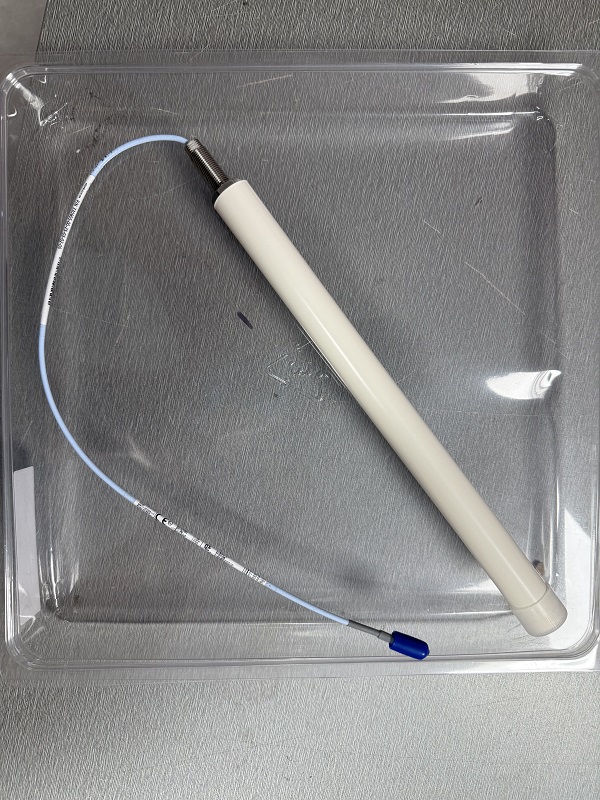

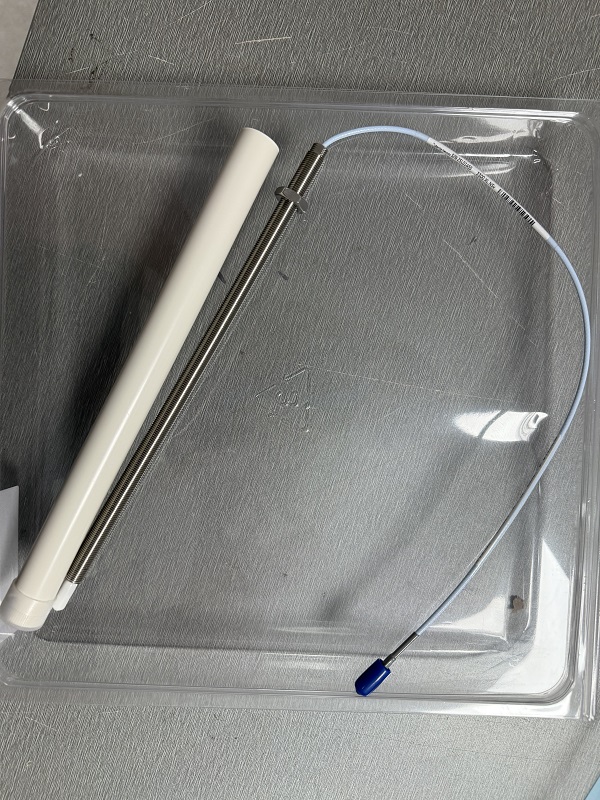

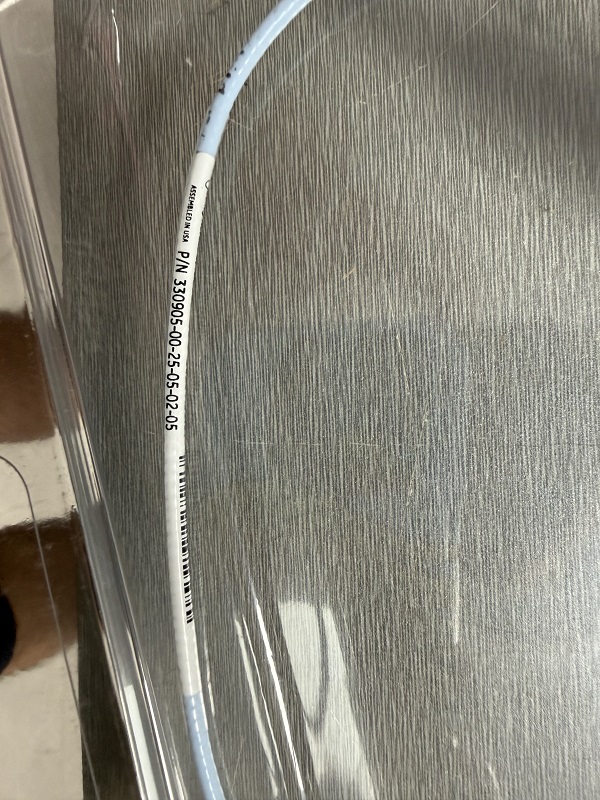

BENTLY NEVADA 330905-00-25-05-02-05 3300 NSv Probe, M10X1 thread

Product Details:

Description:

3300 XL NSv Proximity Transducer System
330903 3300 NSv Probe, M8X1 thread, without armor
330904 3300 NSv Probe, M8X1 thread, with armor
330905 3300 NSv Probe, M10X1 thread, without armor 11/34
330910 3300 NSv Probe, M10X1 thread, with armor
Part Number-AA-BB-CC-DD-EE

A: Unthreaded Length Option：

Unthreaded length must be
at least 20 mm less than
the case length.
Order in increments of 10 mm.
Length configuration:
Maximum unthreaded length:
230 mm
Minimum unthreaded length:
0 mm
Example:
06 = 60 mm

B: Overall Case Length Option:
Order in increments of 10 mm.
Metric thread configurations:
Maximum length: 250 mm
Minimum length: 20 mm
Example: 06 = 60 mm

C: Total Length Option :

05：0.5 meter (20 in)
10：1.0 meter (39 in)
50：5.0 meters (16.4 feet)
70：7.0 meters (23.0 feet)

D: Connector and Cable-Type Option：

01： Miniature coaxial ClickLoc connector with connector protector, standard cable
02：Miniature coaxial ClickLoc connector, standard cable
11：Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12：Miniature coaxial ClickLoc connector, FluidLoc cable

E: Agency Approval Option：

01：Not required
05：Multiple Approvals

The 3300 XL 8 mm Proximity Transducer System consists of:
>One 3300 XL 8 mm probe,
>One 3300 XL extension cable1, and
>One 3300 XL Proximitor Sensor2.

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines
with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:
l  a 3300 NSv probe
l  a 3300 NSv extension cable
l  a 3300 XL NSv Proximitor Sensor(1)

The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview,
or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.
It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat
targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines
where a small shaft or reduced side-view is present:
l  Radial vibration and radial position measurements
l  Axial (thrust) position measurements
l  Tachometer and zero speed measurements
l  Phase reference (Keyphasor signals)
The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the
3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring
