Brand Name: Bently Nevada Item no: 3500/25 149369-01 Price：$700 Origin: USA Packaging Details: New and original factory Delivery time: In Stock Payment: T/T

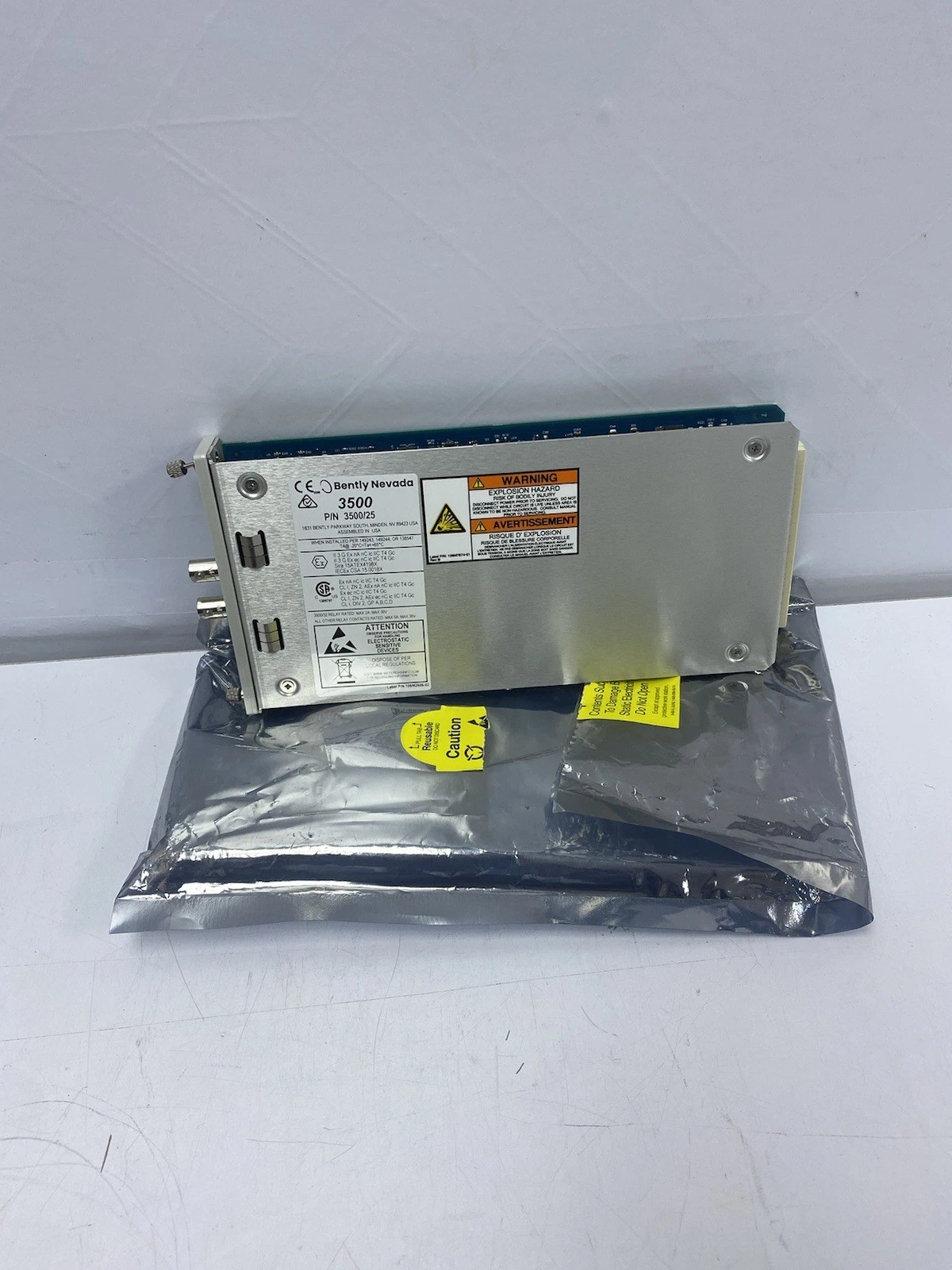

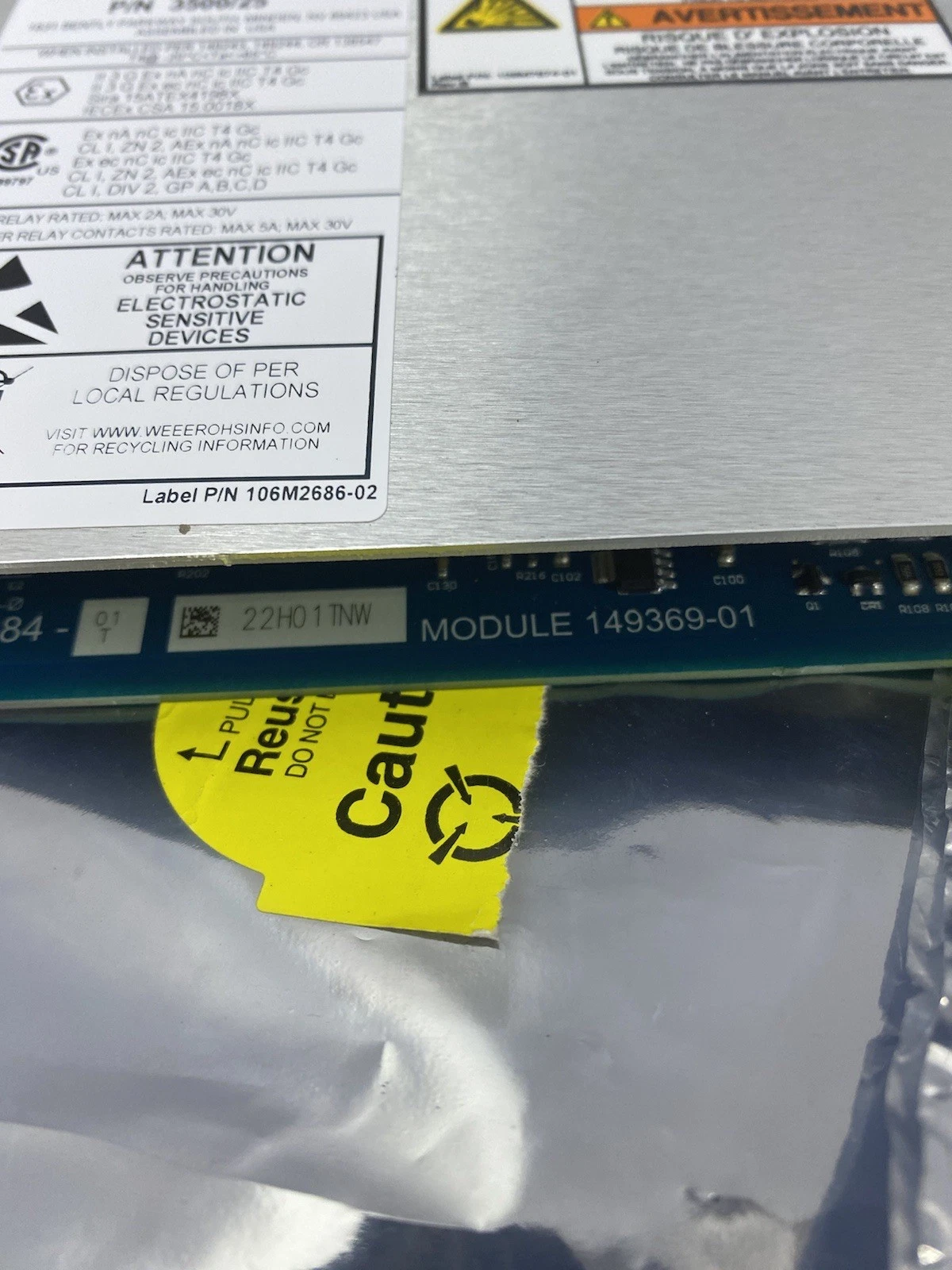

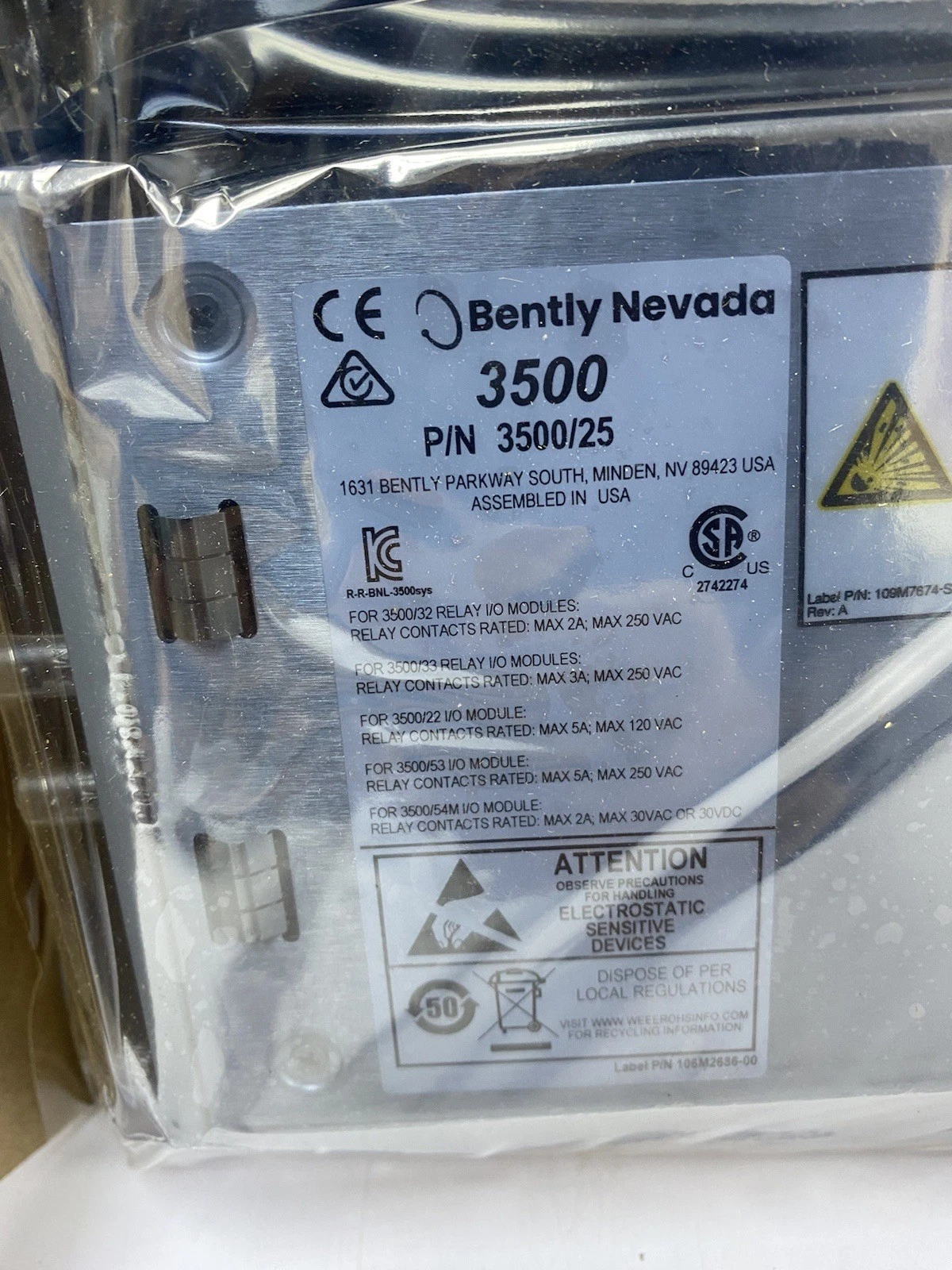

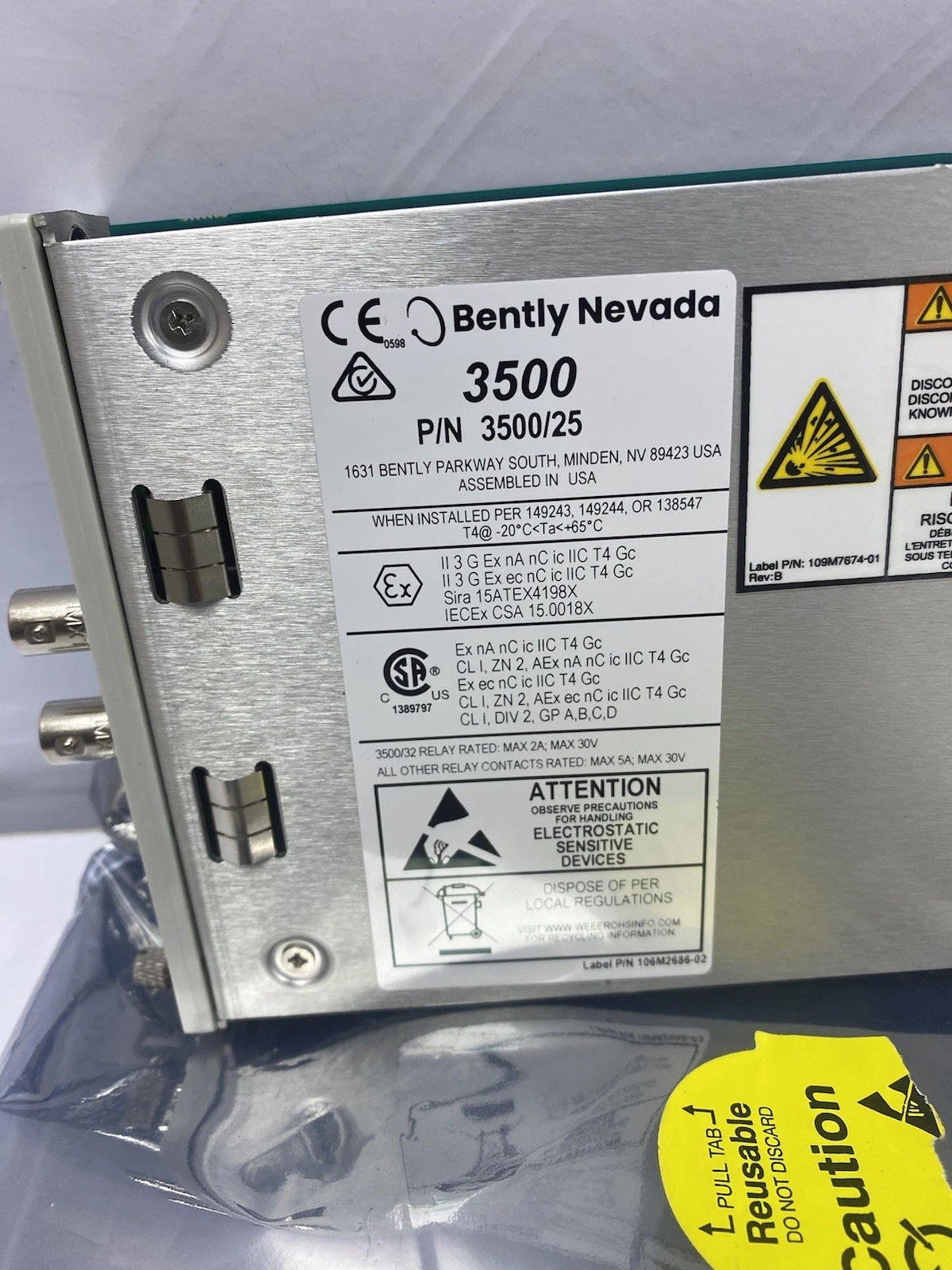

Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module
Product Details:
Brand name | Bently Nevada |
Model | 3500/25 |
Product ID | 149369-01 |
Condition | NEW |
Gross weight | 2.1kg |
Packing size | 20*15*10cm |
Payment Term | T/T |
Warranty | 1 year |
Courier Partner | DHL, UPS, TNT, FedEx and EMS |
The Bently Nevada 3500/25 149369-01 is an enhanced Keyphasor module designed for precise phase and speed monitoring in machinery protection systems. It provides an accurate reference signal based on shaft rotation, enabling precise measurement of machinery phase and speed for diagnostic and protection purposes. This module meets the Keyphasor functionality requirements of APL 670 and can seamlessly integrate with vibration and velocity monitoring systems.
Features：
1.Monitors rotor speed and phase with high accuracy.
2.Supports predictive maintenance.
3.Integrates with 3500 Series systems.
Category | Item | Specifications |
|---|---|---|
Power & Impedance | Inputs Power Consumption | 3.2 Watts typical |
Input Impedance | 21.8 kΩ minimum | |
Signal & Accuracy | Speed/Frequency Signal Accuracy | Specified at +25°C (+77°F) |
Hysteresis | User-selectable from 0.2 to 2.5 Volts | |
Power Supply | Keyphasor Transducer Power Supply | -24 Vdc, 40 mA maximum per channel |
Environmental | Operating Temperature | -30°C to +65°C (-22°F to +150°F) when used with Keyphasor I/O Module other than the Internal Barrier version |
Storage Temperature | -40°C to +85°C (-40°F to +185°F) | |
Humidity | 95%, non-condensing | |
Physical | Dimensions (Height x Width x Depth) | 119.9 mm x 24.4 mm x 256.5 mm (4.72 in x 0.96 in x 10.10 in) |
Weight | 0.34 kg (0.76 lbs.) |
