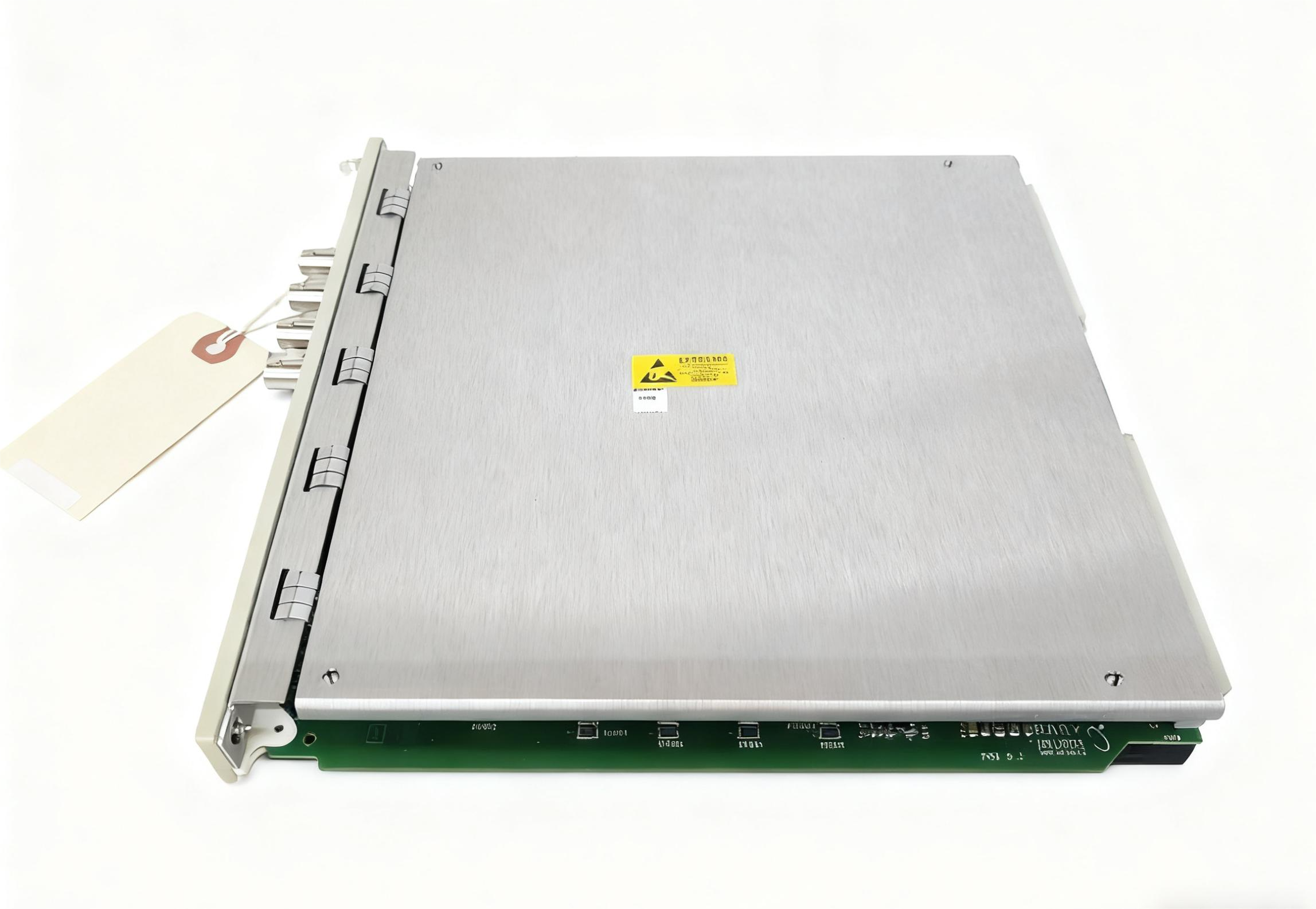

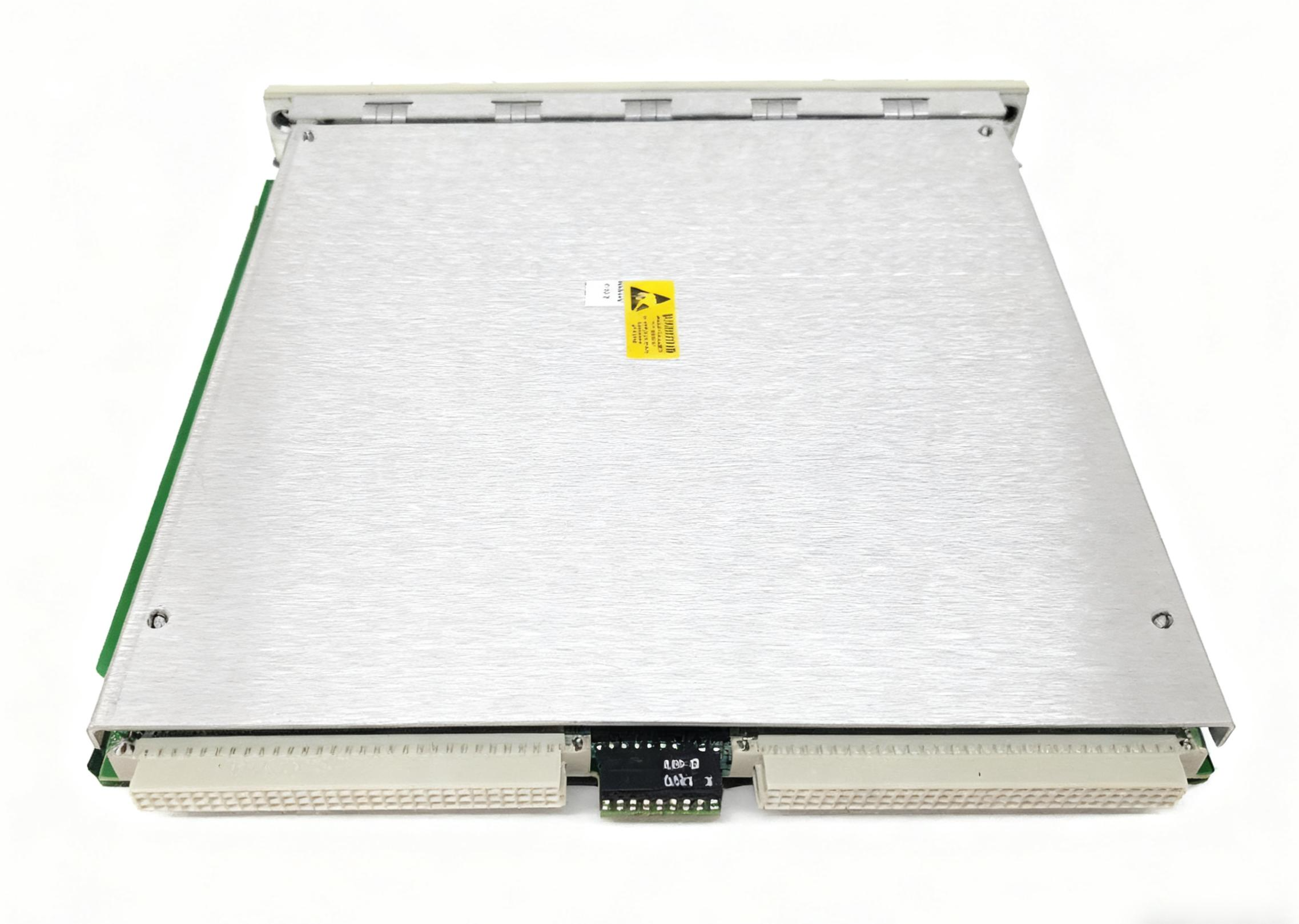

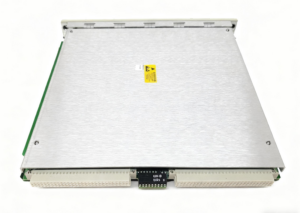

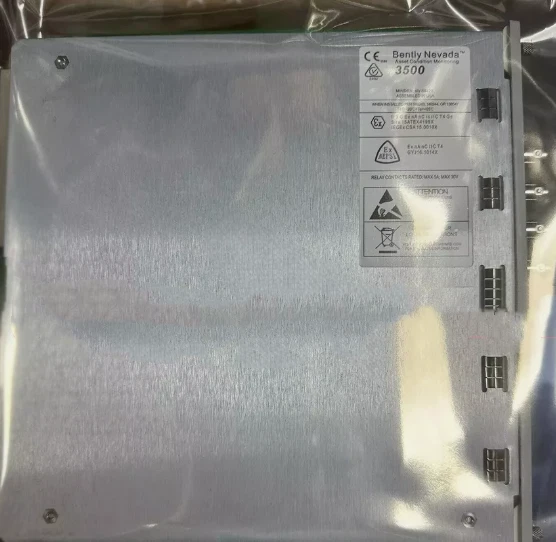

Bently Nevada 3500/42M 140734-02 Proximitor Seismic Monitor

Brand Name: Bently Nevada
Item no: 3500/42M 140734-02
Price：$1600
Origin: USA
Packaging Details: New and original factory
Delivery time: In Stock
Payment: T/T

Description

Bently Nevada 3500/42M 140734-02 Proximitor Seismic Monitor


Product Details:

Brand name	Bently Nevada
Model	3500/42M
Product ID	140734-02
Condition	NEW
Gross weight	2.1kg
Packing size	201510cm
Payment Term	T/T
Warranty	1 year
Courier Partner	DHL, UPS, TNT, FedEx and EMS

Description:

The 3500/42M 140734-02 Proximitor Seismic Monitor is a 4-channel monitor designed for advanced machinery protection and condition monitoring in industrial environments. It continuously compares monitored parameters with preset alarm setpoints and triggers alarms as needed to protect machinery. Users can configure each channel using the 3500 rack configuration software to track various parameters, including radial vibration and thrust position.

Category	Item	Specifications
Inputs	Signal	Accepts 1 to 4 signals from proximity, velocity, or acceleration transducers.
	Input Impedance	10 kΩ for Proximitor and acceleration inputs.
	Power Consumption	7.7 watts.

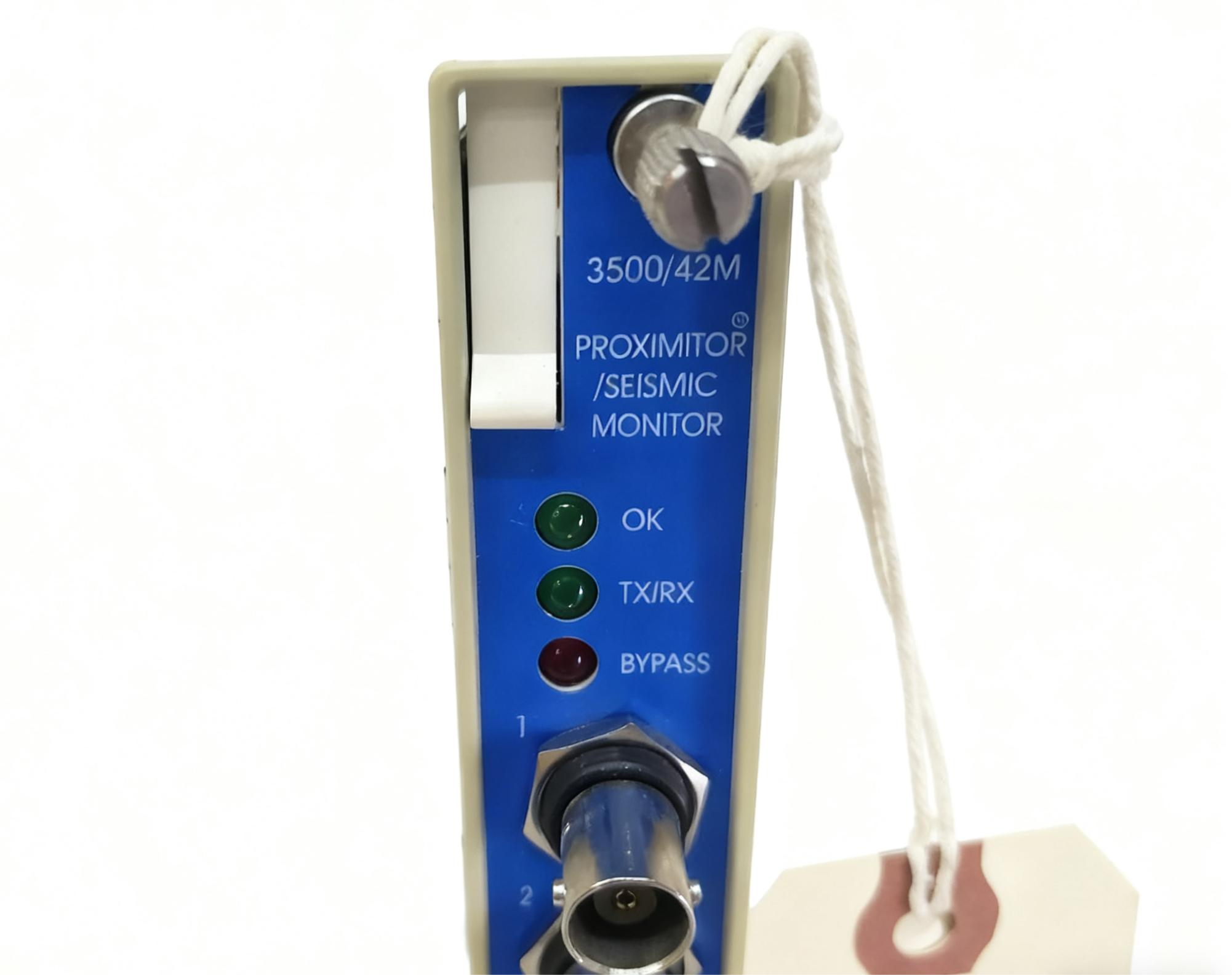

Outputs	Front Panel LEDs - OK LED	Indicates proper operation.
	Front Panel LEDs - TX/RX LED	Shows communication status with other 3500 rack modules.
	Front Panel LEDs - Bypass LED	Indicates Bypass Mode status.
	Buffered Transducer Outputs - Connectors	Coaxial connectors for each channel, short-circuit protected.
	Buffered Transducer Outputs - Output Impedance	550 Ω.
	Transducer Power Supply	-24 Vdc.
	Recorder Outputs - Current	+4 to +20 mA, proportional to full-scale, unaffected by short circuits.
	Recorder Outputs - Voltage Compliance	0 to +12 Vdc across a load with resistance from 0 to 600 Ω.
	Recorder Outputs - Resolution	0.3662 μA per bit, ±0.25% error at room temperature, ±0.7% over the temperature range.
	Recorder Outputs - Update Rate	Approximately 100 ms or less.
	Shaft Absolute Buffered Outputs - Impedance	300 Ω.
	Shaft Absolute Buffered Outputs - Protection	Short-circuit protected.
