Brand Name: TSI system part Item no: CMC16 200-530-025-014 Price：$9000 Origin: Switzerland Packaging Details: New and original factory Delivery time: In Stock Payment: T/T

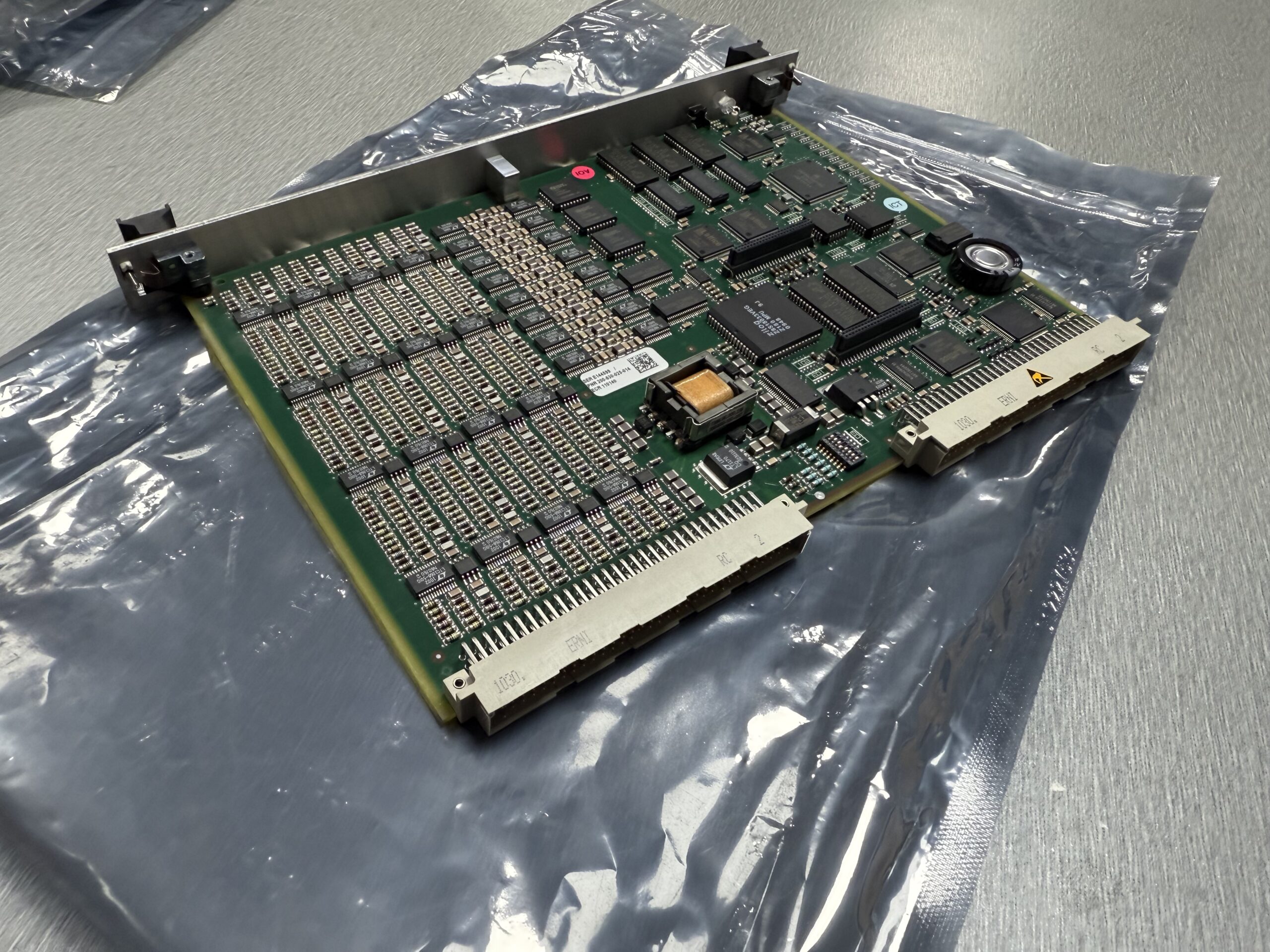

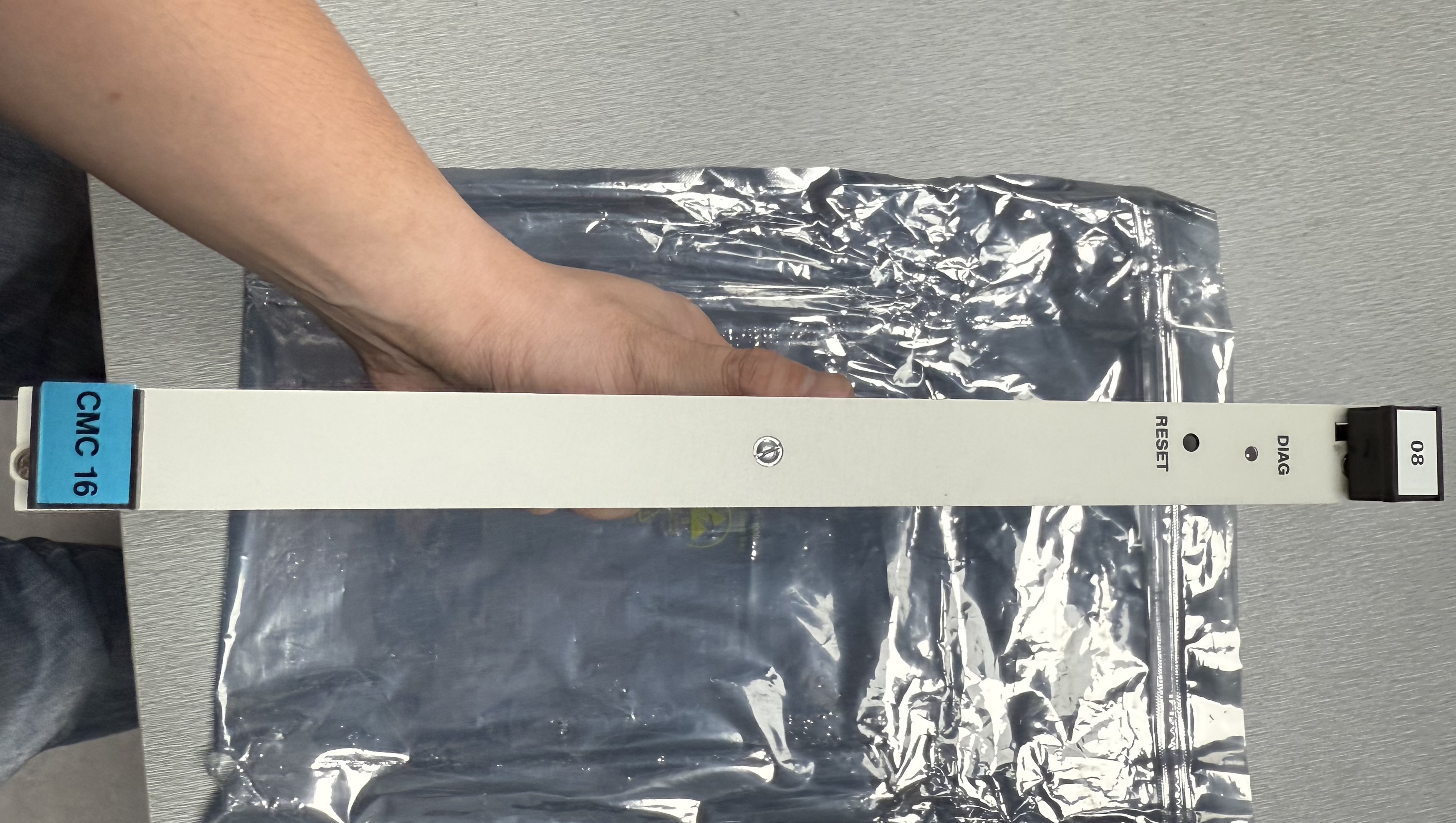

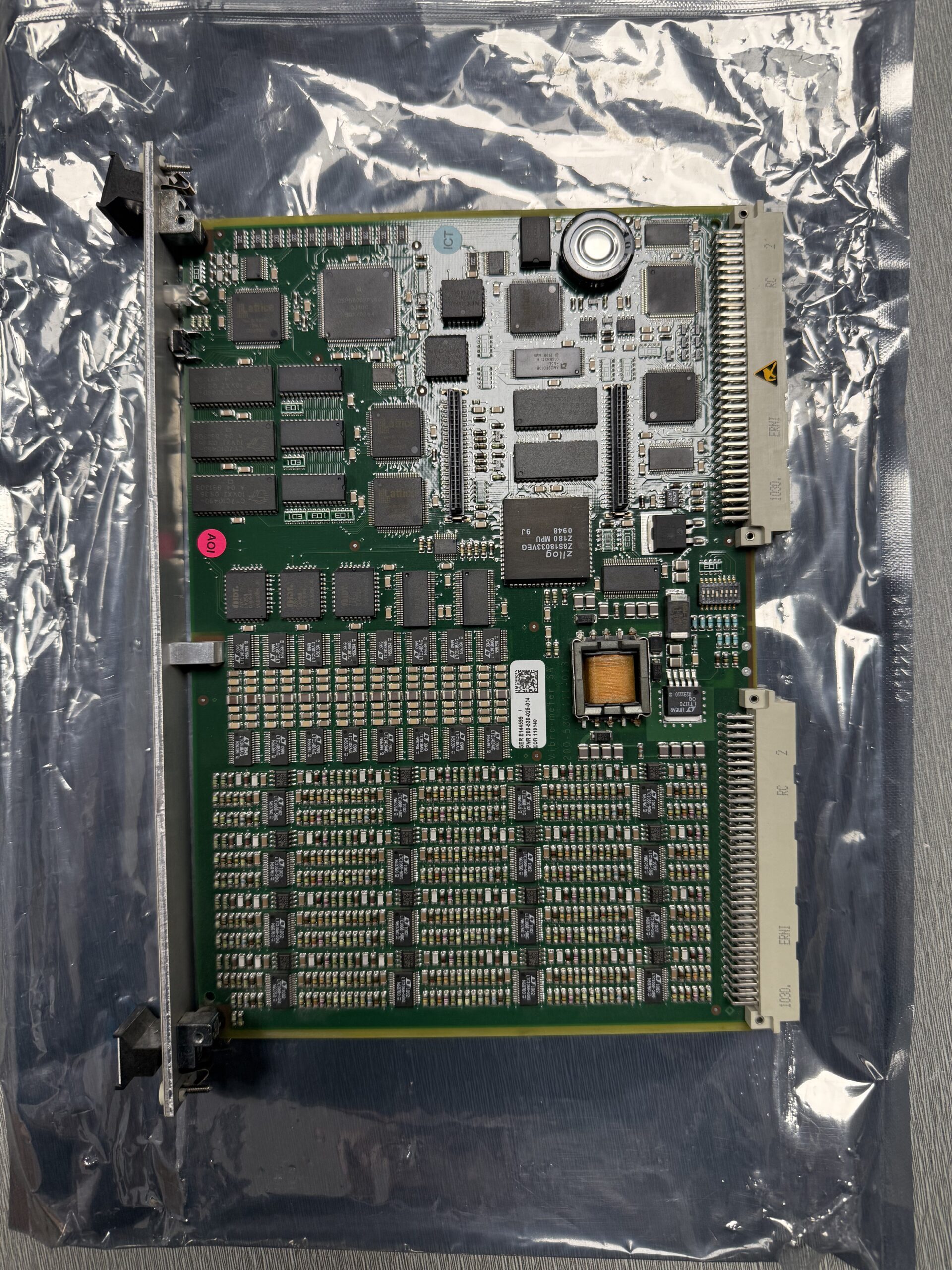

CMC16 Condition Monitoring Card /200-530-025-014
Product Details:
| Brand name | TSI system part |
| Model | CMC16 |
| Product ID | 200-530-025-014 |
| Condition | NEW |
| Gross weight | 2.1kg |
| Packing size | 20*15*10cm |
| Payment Term | T/T |
| Warranty | 1 year |
| Courier Partner | DHL, UPS, TNT, FedEx and EMS |
Description:The CMC 16 Condition Monitoring Card is a core component of the VM 600 series condition monitoring system. It functions as an intelligent data acquisition unit, working with CMS software to collect, analyze, and transmit data to a host computer via CPU modules or serial communication. The card supports fully programmable inputs for signals such as vibration, speed, pressure, and other dynamic or static measurements. It also features signal conditioning, anti-aliasing filters, and onboard processing for FFT analysis, unit conversion, and system communication.
FEATURES: • 16 individually configurable dynamic channels • 16 parallel programmable anti-aliasing filters and ADCs • First 4 channels also configurable as tacho inputs • Last 12 channels also configurable as process values • VME architecture • Configurable Synchronous and Asynchronous sampling • High resolution 3200- line FFT • 10 fully configurable frequency bands per channel • 6 configurable alarms per band with hysteresis deadbands • Schedule, ‘on-alarm’ and ‘on exception’ based logging • Ethernet and Serial RS-485 communication options • On-board buffer storage • Status indication by 3-colour LED on front panel • Live insertion / removal of cards with automatic configuration
