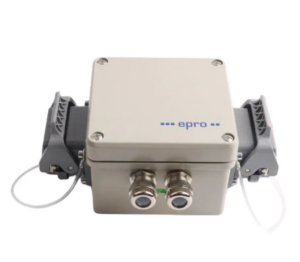

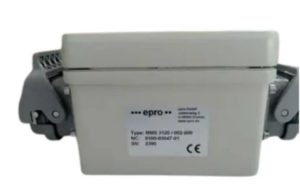

EPRO MMS3120 Dual Channel Bearing Vibration Transmitter

 Product Details:

Description:
----------------------------------------------------------------------------------------------------------------

MMS3120 DATASHEET PDF

Measurement and processing of absolute bearing vibrations
Signal inputs for electrody-namic vibration transducers
Integrated micro controller
Corresponds to the most common standards, such as VDI 20561.
Two redundant 24 V dc supply inputs
Self-test functions for elec-tronic circuits and transducers
To be mounted directly at the machine
0/4..20 mA current outputs
Limit supervision

Applications:
----------------------------------------------------------------------------------------------------------------

The MMS 3120 dual channel bearing vibration transmitter is part of the MMS 3000 transmitter sys-tem for monitoring and protecting any kind of turbo machines.
lt permits economic measurement and supervision of absolute bearing vibrations by using electrodynamic vibration transducers.
Application fields of the system are all types of turbo machines, fans, compressors, gear boxes pumps and other machines.
MMS3000Transmittersaresuitable for big systems with programmable logic controls and host computers as used in power stations, refineries and chemical plants, as well as for small plants
with only few measuring points and decentralized data processing.
The inputs of the transmitter may be operated with all epro standard bearing vibration transducers:
PR 9268120 ../30 and PR 9268/60 ..170
The transmitter is not designed for the use in hazardous areas.
