Foxboro FBM203/b/c/d Platinum/Nickel/Copper RTD Input Modules

 Product Details:

FBM203 Data sheet.PDF

The FBM203/b/c/d Platinum/Nickel/Copper RTD Input Modules contain eight resistance temperature detector (RTD) input channels.

input, within a 0 to 320 ohm (FBM203), 0 to 640 ohm (FBM203b), or 0 to 30 ohm (FBM203c) resistance range.

Each input channel of the FBM203d accepts a 4-wire RTD sensor input, within a 0 to 320 ohm resistance range.

Each analog input is galvanically isolated from other channels and ground.

The modules perform the signal conversion required to interface the electrical input signals from the field sensors to the optionally redundant fieldbus.

The FBM203/b/c/d modules execute an analog input application program, which provides conversion time (on a per module basis) and configurable options for Rate of Change Limits.

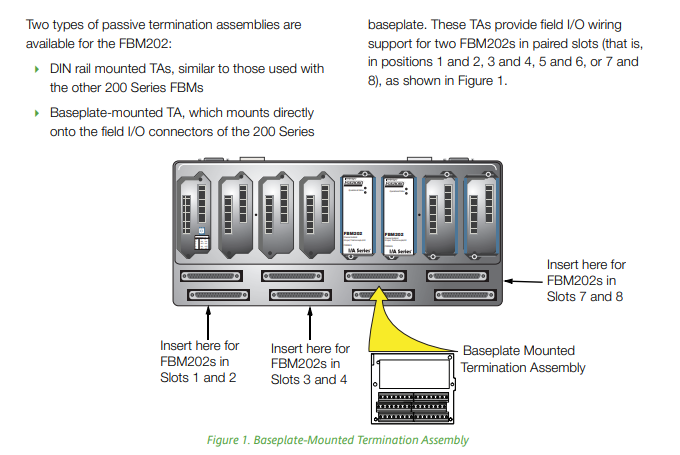

Two types of passive termination assemblies (TAs) are available for the FBM203/b/c modules:

• DIN rail mounted TAs, similar to those used with the other 200 Series Fieldbus Modules (FBMs)

• Baseplate-mounted TA, which mounts directly onto the field I/O connectors of the 200 Series baseplate. These TAs provide field I/O wiring support for two FBM203/b/c in paired slots (that is, in positions 1 and 2, 3 and 4, 5 and 6, or 7 and 8), as shown in Figure 1.
