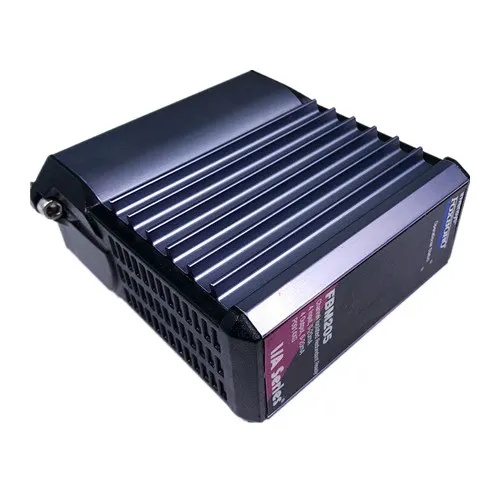

Foxboro FBM205, 0 to 20 mAI/OInterface Module (Redundant)

 Product Details:

Brand name

Foxboro

Model

FBM205

Product ID

FBM205

Condition

NEW

Gross weight

1 kg

Packing size

40*35*5cm

Payment Term

T/T

Warranty

1 year

Courier Partner

DHL, UPS, TNT, FedEx and EMS

FBM205 datasheet

FBM205， The 0 to 20 mA I/O interface (redundant) includes four redundant 0 to 20 mA ADC analog input channels and four redundant 0 to 20 mA DC analog output channels. The input/output is electrically isolated from other channels on the ground. A pair of redundant modules are combined together to provide a redundant module (FBM) level on the fieldbus, with field I/O connected to a common termination component. Each module independently attempts to maintain the output at a specified value and reports its observed input values. Verify the information of each input and output by combining the redundant analog input and output blocks in the control software with the module. FBM205 is electrically compatible with standard HARTsignals.

Features:

1. Four redundant 20mADC analog input channels
2. Four redundant 20mADC analog output channels
3. Each input and output channel is electrically isolated
4. Sturdy design, suitable for enclosures in G3 level (harsh) environments
5. Implement a simulation input application that provides conversion time and configurable options for rate of change limitations
6. The configurable options in the output security module include fail safe operations
7. Achieving high precision through sigma delta data conversion for each channel
8. Used to connect on-site wiring locally or remotely to FBM205
9. Redundant circuit power supply on FBM powered transmitter
10. Active transmitter with 3-layer termination components for internal and/or external circuits of each channel
