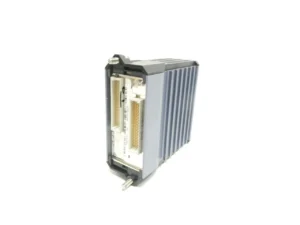

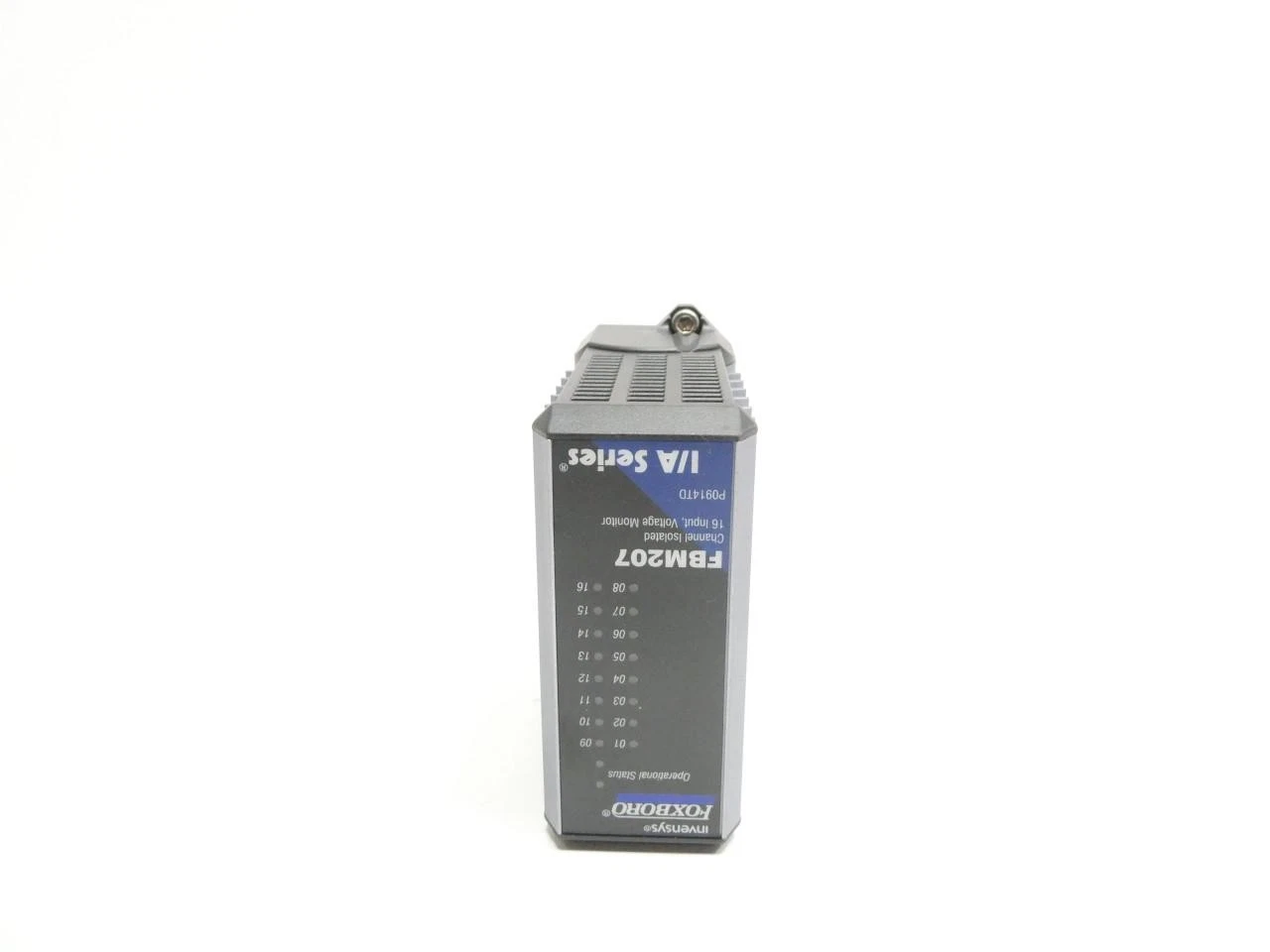

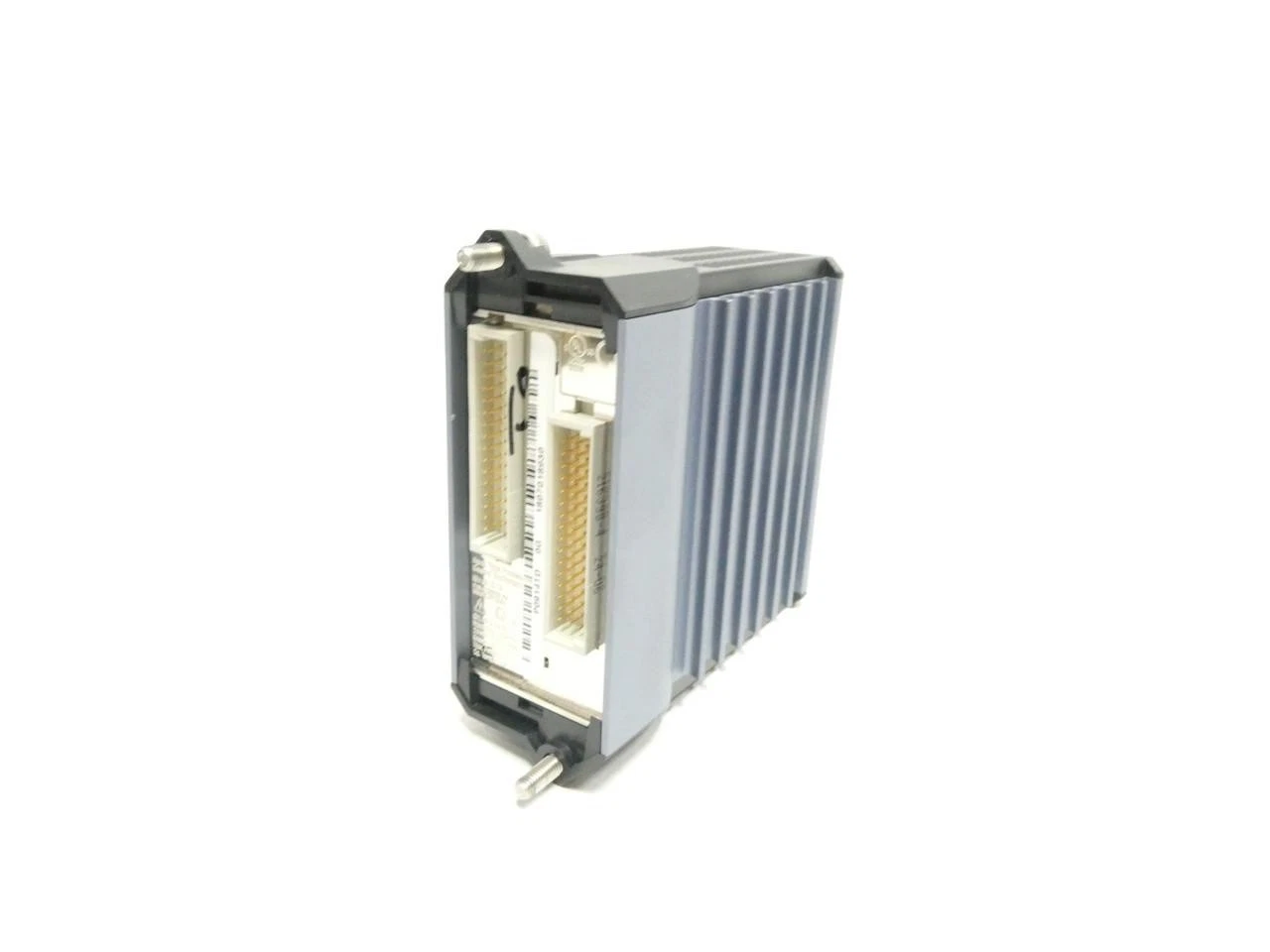

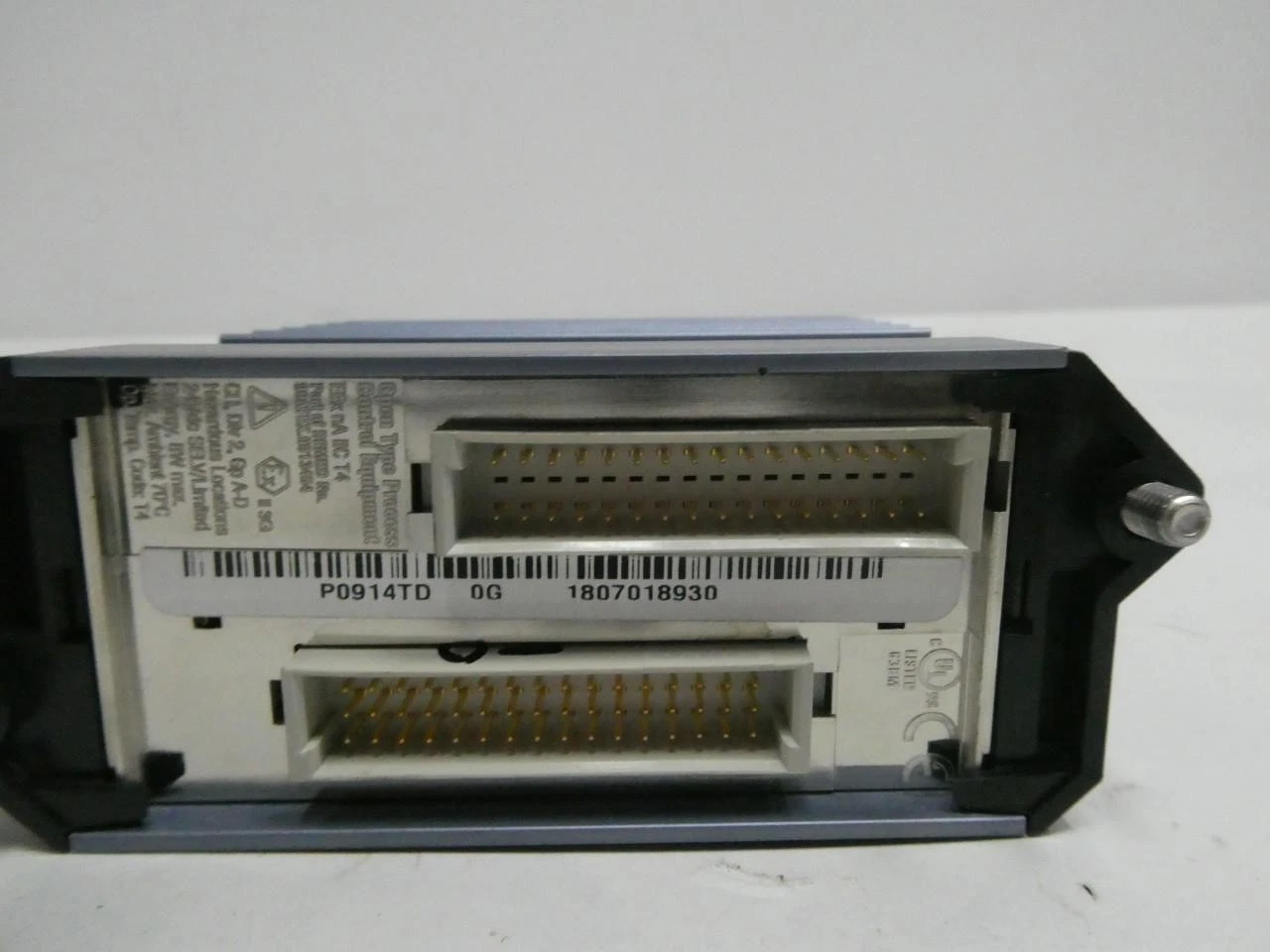

Foxboro FBM207 Voltage Monitor/Contact Sense Input Modules

 Product Details:

Brand name

Foxboro

Model

FBM207

Product ID

FBM207

Condition

NEW

Gross weight

1 kg

Packing size

40*35*5cm

Payment Term

T/T

Warranty

1 year

Courier Partner

DHL, UPS, TNT, FedEx and EMS

FBM207 datasheet

Discrete inputs can adapt to various voltage levels commonly found in industrial facilities. FBM207/b/c matches the external power supply voltage level of the factory through one of several terminal assemblies (TA). In some scenarios, the input can be used as a component of the control system architecture, and FBM207/b/c can be paired and installed with the standard control block Monitor/Contact Sense Redundancy to achieve redundancy. FBM207/b/c operates as a 16 channel DC voltage monitor or 16 channel contact input sensor, with each channel receiving a two-wire input signal from FBM207 or a pair of contacts/solid-state switches (FBM207/b/c). The matching terminal assembly (TA) supports discrete input signals such as 60VDC, 120VAC/125VDC, 240VAC, etc; If the voltage is higher than 10VDC, the terminal component needs to be equipped with signal conditioning hardware to achieve voltage attenuation and optoelectronic isolation.

Features:

1. FBM207 supports 16 discrete input signals and adapts to voltages including:
15 to 60VDC - Voltage Monitoring
120VAC/125VDC - Voltage monitoring or switch input
240VAC - Voltage monitoring or switch input
2. Each input adopts electrical isolation and supports group isolation under external excitation
3. Support single module or redundant module configuration
4. Sturdy design, suitable for G3 level (harsh) environment housing
5. It can execute discrete input, ladder logic, pulse counting, and sequential event programs, and supports configurable input filtering time options
6. Terminal assembly (TA), used for local or remote connection of field wiring to FBM207/b/c
7. Terminal components are suitable for devices powered by internal circuits in each channel
8. Various terminal components are equipped with additional signal conditioning hardware, which can achieve voltage attenuation and optoelectronic isolation
