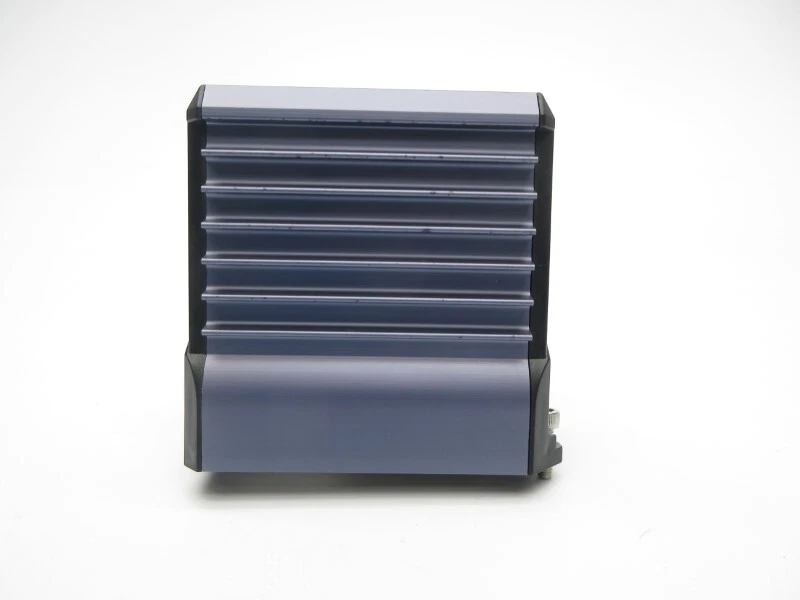

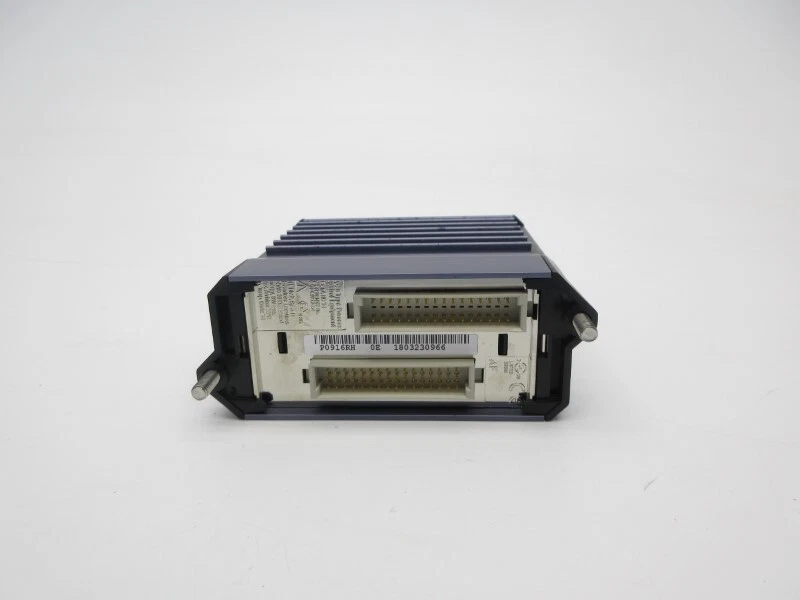

Foxboro FBM219 Discrete I/O Interface Module

 Product Details:

Brand name

Foxboro

Model

FBM219

Product ID

FBM219

Condition

NEW

Gross weight

1 kg

Packing size

40*35*5cm

Payment Term

T/T

Warranty

1 year

Courier Partner

DHL, UPS, TNT, FedEx and EMS

FBM219 datasheet

The FBM219 discrete I/O module includes 24 discrete input channels and 8 discrete output channels. The matching terminal assembly (TA) supports discrete input or output signals with voltages below 30V DC, 120V AC/125V DC, and 240V AC. The configuration of terminal components depends on the type of I/O signal required, including current limiting devices, fuses, relays, or relay outputs equipped with internal/external power sources and fuses.

Features:

1. 24 discrete input channels
2. 8 discrete output channels
3. Supports discrete input/output signals with the following voltages:
15 to 60V DC
120V AC/125V DC
240V AC
4. Each input/output supports group isolation
5. Sturdy design, suitable for G3 level (harsh) environments with a casing
6. It can execute discrete I/O or ladder logic programs and supports the following configurable options: input filtering time, fail safe configuration, fault fallback, and continuous/instantaneous output
7. Various terminal assemblies (TA) include high-voltage attenuation and optoelectronic isolation functions for input
