Brand Name: Foxboro Item no: FBM224 Price：$ 350 Origin: USA Packaging Details: New and original factory Delivery time: In Stock Payment: T/T

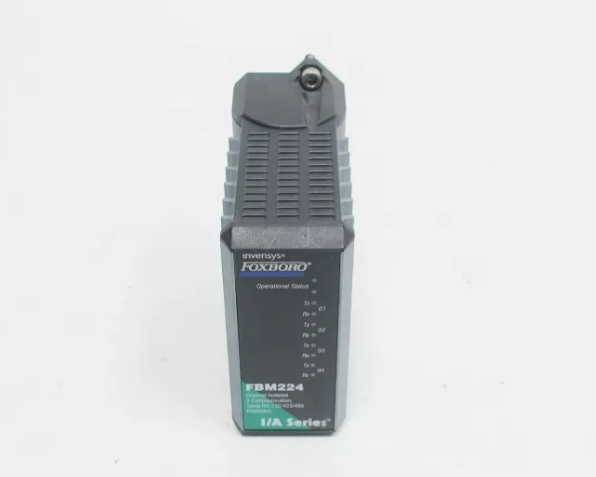

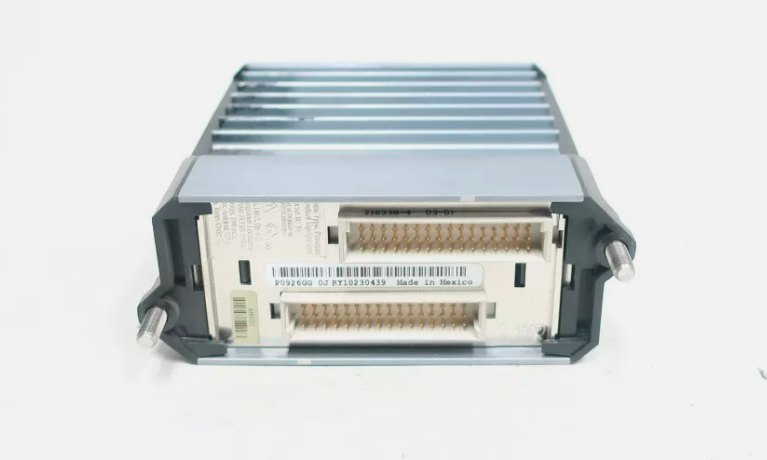

Foxboro FBM224 Modbus® Communication Module Product Details:
| Brand name | Foxboro |
| Model | FBM224 |
| Product ID | FBM224 |
| Condition | NEW |
| Gross weight | 1 kg |
| Packing size | 40*35*5cm |
| Payment Term | T/T |
| Warranty | 1 year |
| Courier Partner | DHL, UPS, TNT, FedEx and EMS |

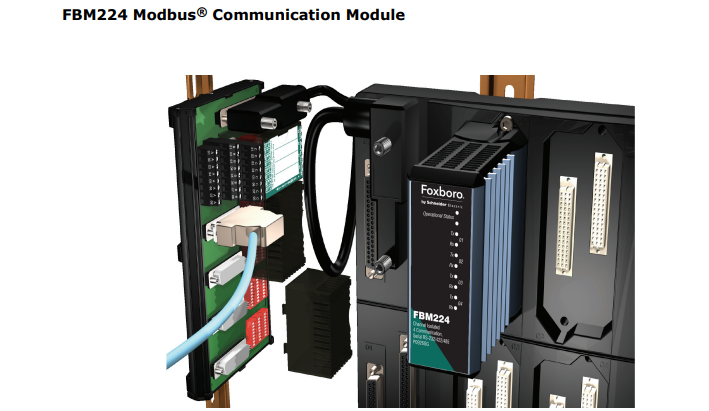

FBM224 Datasheet.PDF The FBM224 Modbus Communication Interface Module provides an interface between Modbus slave devices — such as programmable logic controllers and field I/O devices — and the Control Processor (FCP280, FCP270/ZCP270, or CP60) of the Foxboro Evo™ Process Automation System or I/A Series system. Devices with which the FBM224 can successfully communicate are those which support RS-232, RS-422, or RS-485 communication interface standards and the Modbus protocol in RTU mode. The FBM224 supports the Modbus functioncodes from the list in Table 1.
Features: Key features of the FBM224 module are: Conforms to Modbus protocol Offers a choice of RS-232, RS-422, or RS-485 communication interface standard Integrates Modbus slave device data into a Foxboro control database With its associated termination assembly (TA), is suitable for installation in Class 1, Division 2 and Zone 2 locations.
| IC697CMM742 | IC670GBI002 |
| IC697CPX772 | IC670CHS101 |
| IC697BEM731 | IC670MDL241 |
| IC697CMM711 | IC670ALG320 |
| IC697CPM790 | IC670ALG230 |
| IC697VAL134 | IC670MDL740 |
| IC670CHS001 | IC670MDL930 |
