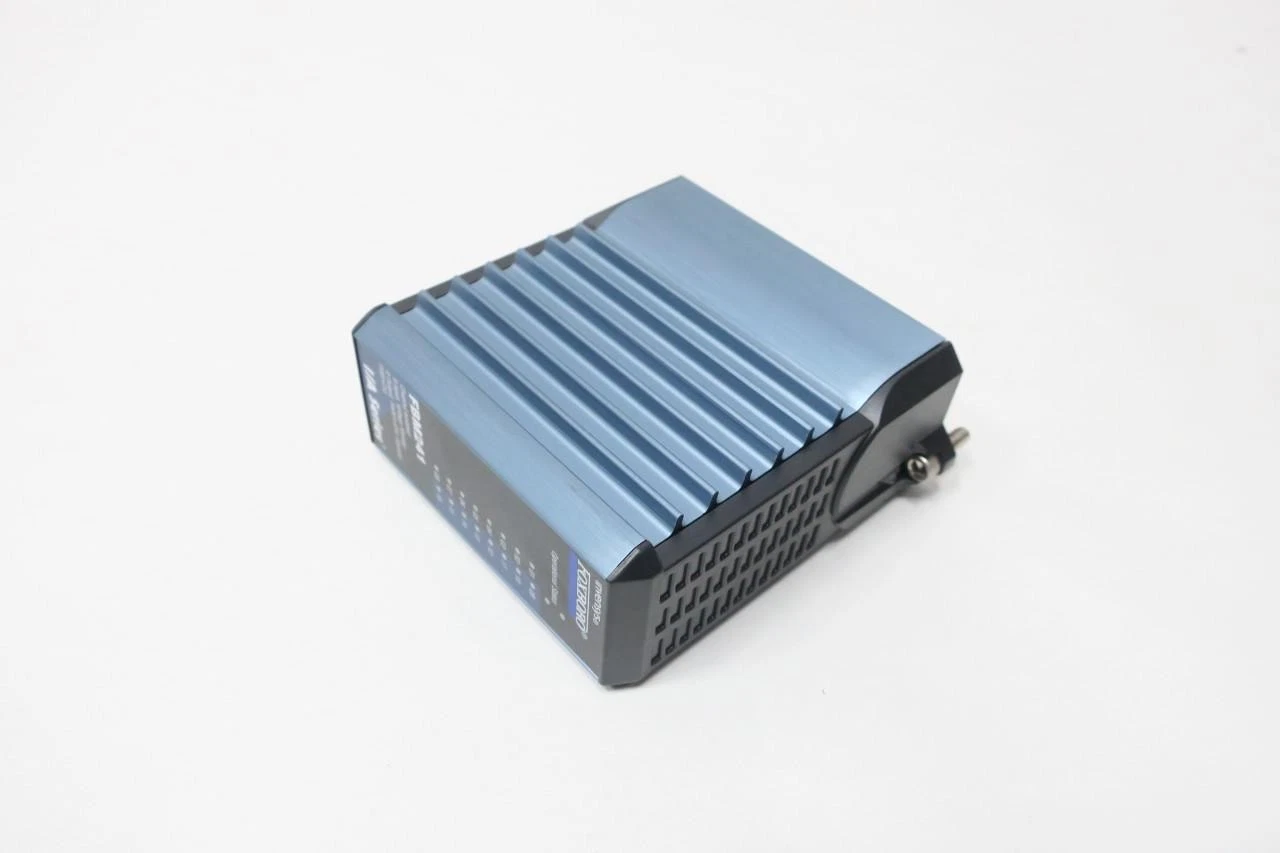

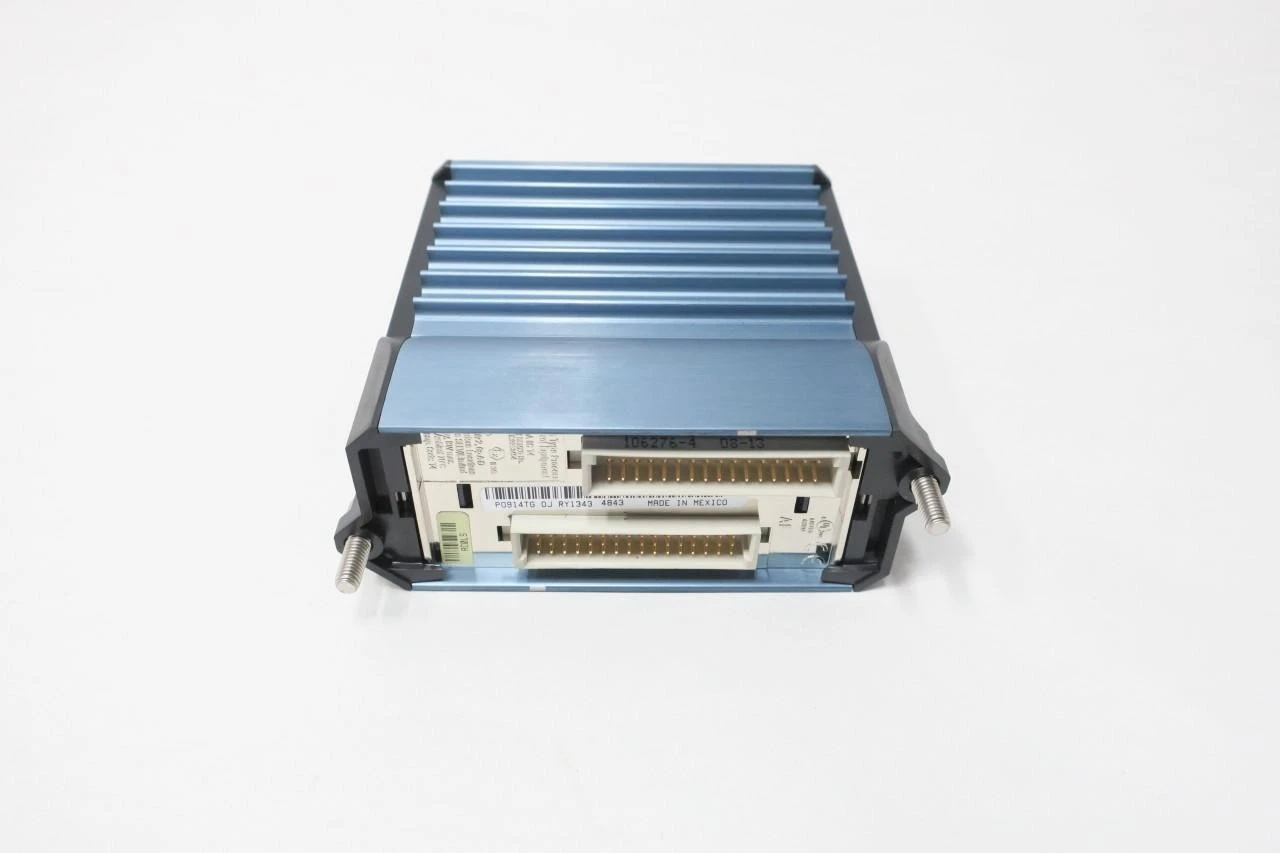

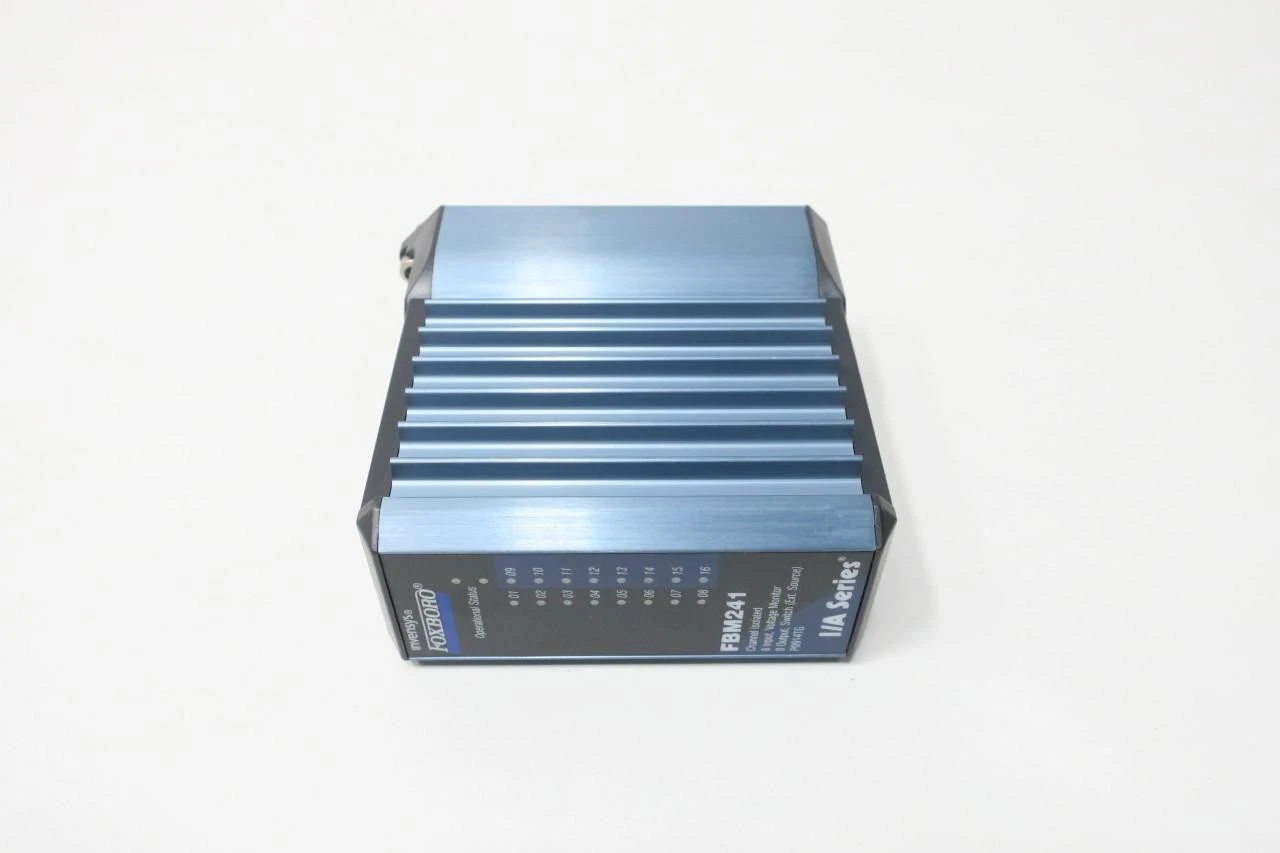

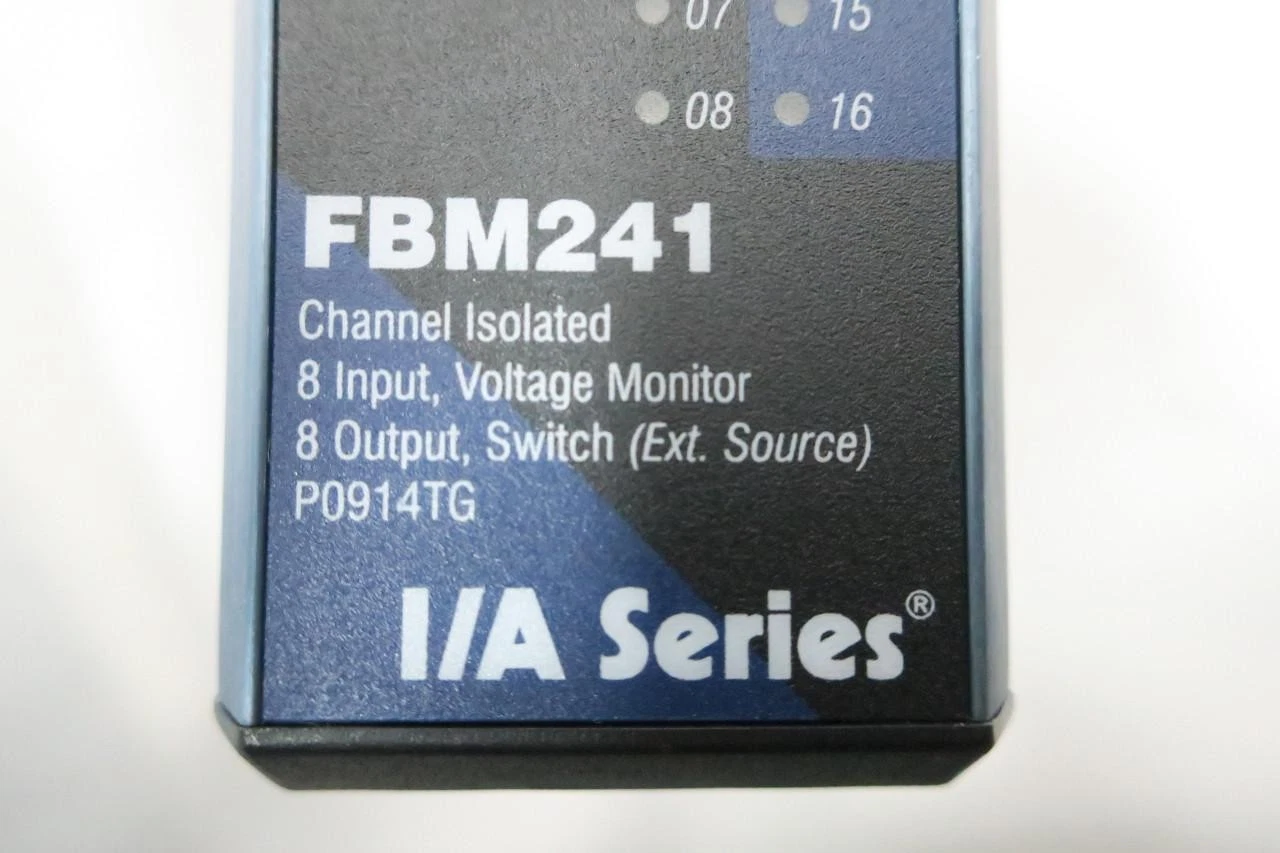

Foxboro FBM241 Redundant, Discrete I/O Modules

 Product Details:

Brand name

Foxboro

Model

FBM241

Product ID

FBM241

Condition

NEW

Gross weight

1 kg

Packing size

40*35*5cm

Payment Term

T/T

Warranty

1 year

Courier Partner

DHL, UPS, TNT, FedEx and EMS

FBM241 datasheet

The standard FBM241, FBM241b, FBM241c, and FBM241d are all equipped with 8 discrete input channels and 8 discrete output channels, which can be used as single modules or redundant modules. A set of redundant modules will be combined into a whole to achieve redundancy at the FBM level, and on-site wiring needs to be connected to shared terminal components.
The channel isolated discrete I/O module (FBM241b/c/d) includes 8 discrete input channels and 8 discrete output channels. The matching terminal assembly (TA) supports discrete input/output signals with voltages not exceeding 60VDC, 120VAC/125VDC, or 240VAC.
According to the required type of I/O signal, terminal components will be equipped with current limiting devices, fuses, relays, or relay outputs with internal/external power sources and fuses.

Features:

1. 8 discrete input channels, 8 discrete output channels
2. Supports discrete input/output signals with the following voltages:
15 to 60V DC
120V AC/125V DC
240V AC
3. Each input and output is electrically isolated; Support group isolation when used in conjunction with external incentives
4. Sturdy design, suitable for G3 level (harsh) environment housing
5. Can execute discrete I/O or ladder logic programs, supporting the following configurable options:
Input filtering time
Fault safety configuration
Fault safety rollback
Continuous or instantaneous output
6. Various terminal assemblies (TA) include the following components:
Current limiting device
fuse
relay output
Relay output equipped with internal/external power supply and fuse
solid-state output
7. Support single module or redundant module configuration
