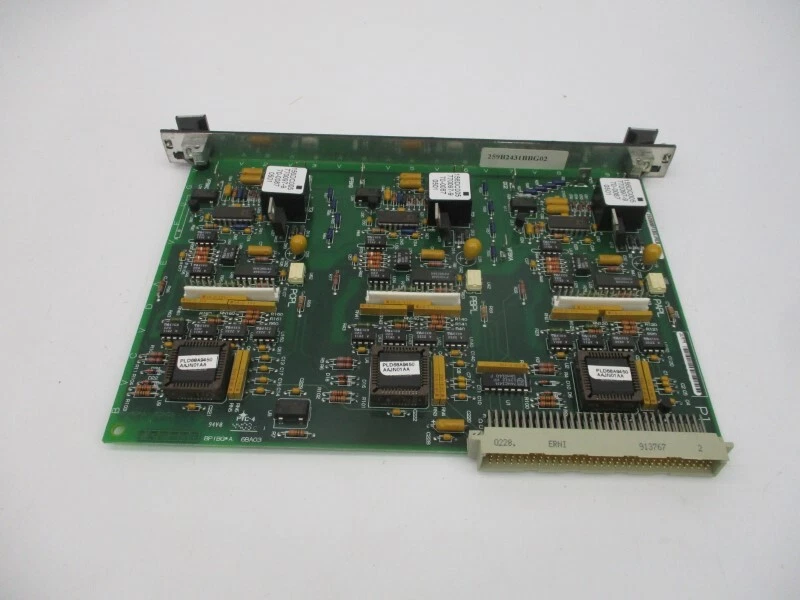

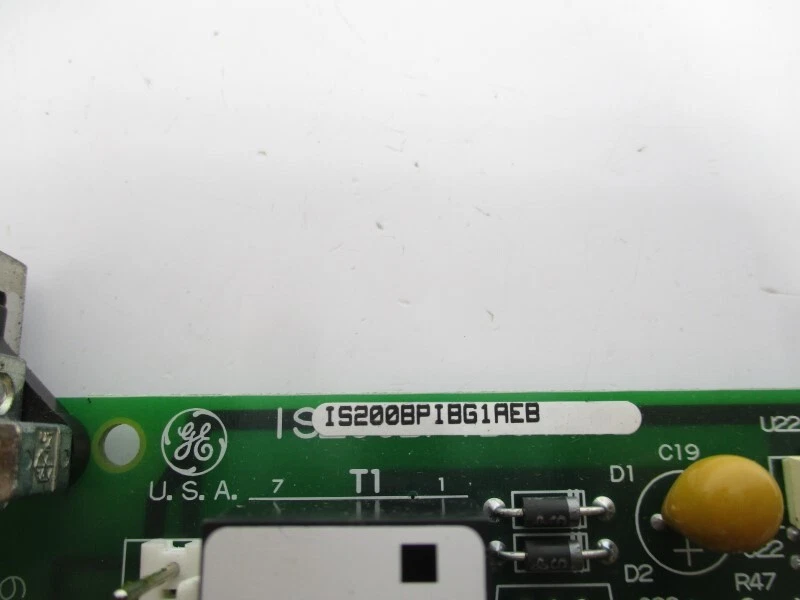

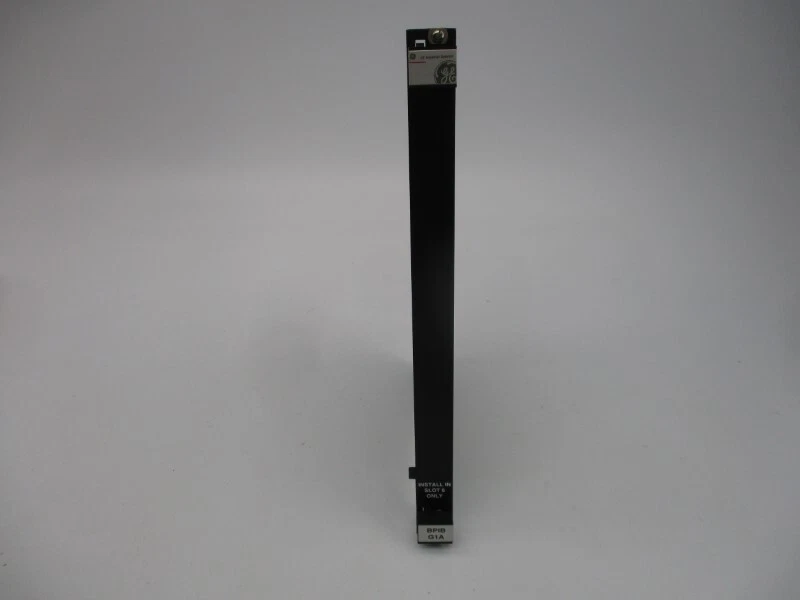

GE IS200BPIBG1AEB Mark VI Drive Bridge Personality Interface Card

 Product Details:

Brand name

GE

Model

IS200BPIBG1AEB

Product ID

IS200BPIBG1AEB

Condition

NEW

Gross weight

1 kg

Packing size

40*35*5cm

Payment Term

T/T

Warranty

1 year

Courier Partner

DHL, UPS, TNT, FedEx and EMS

Description:

The GE IS200PPIBG1AEB Mark VI drive axle personality interface card is the phase logic module of the Mark VI speed electronic system, used for gas turbine and steam turbine control. It is used in conjunction with the gate driver board to capture and process fault signals, and provides signal conditioning for the P1 connector to connect the gate driver and shunt feedback board. It is inserted into the VME rack through the rear P1 connector, with 6 plug-in connectors for IGBT boards and 5 plug-in connectors for phase and DC link signal detection, ensuring stable system operation.

Features：

1. Fault self handling mechanism: Independently process partial fault signals to reduce the load on the main control system
2. 1024 bit ID memory: stores detailed circuit board identification and revision information for traceability management
3. Conformal coating protection: enhances corrosion resistance and chemical erosion resistance
4. No need for external components: no fuses, test points, or LED indicators are required to operate, simplifying maintenance
5. Quick fault report: transmit fault data to the processing unit within 0.8ms
