Brand Name: TSI system part Item no: GSI127 244-127-000-021-A2-B02 Price：$2300 Origin: Switzerland Packaging Details: New and original factory Delivery time: In Stock Payment: T/T

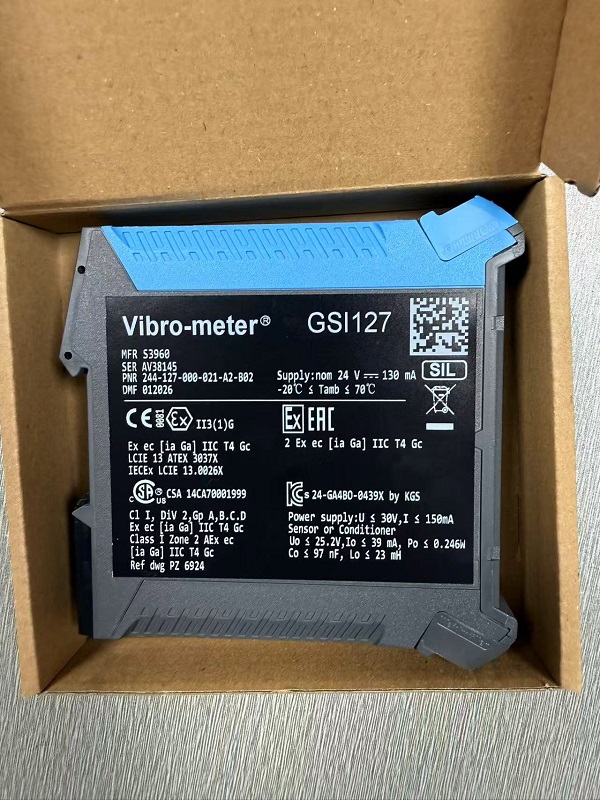

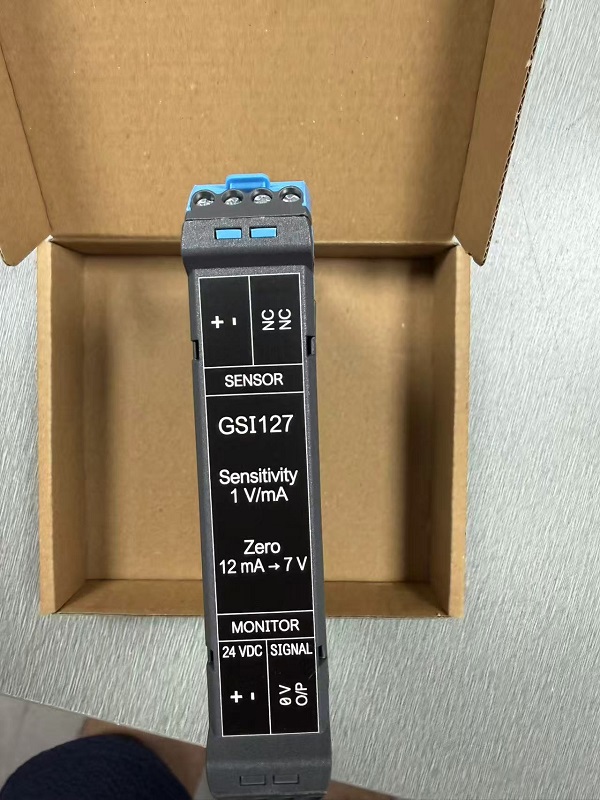

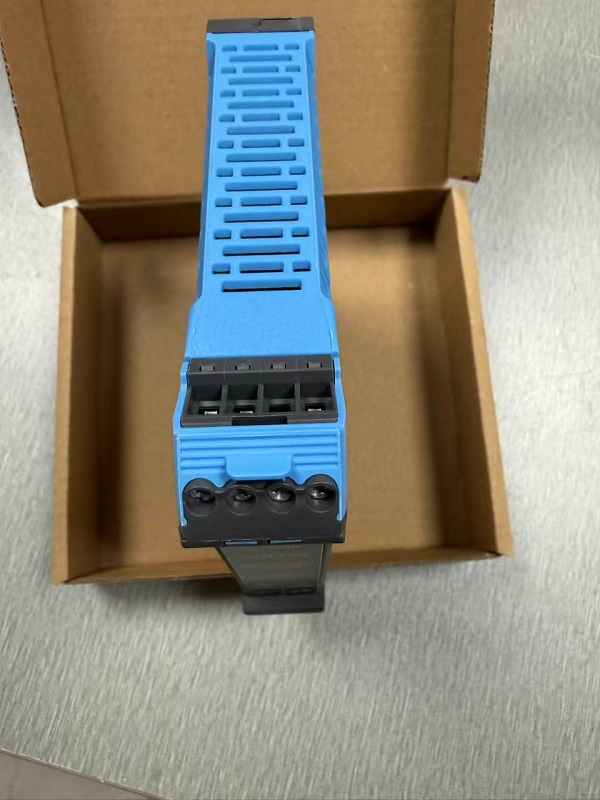

GSI127 244-127-000-021-A2-B02 Galvanic Separation Unit
Product Details:
| Brand name | TSI system part |
| Model | GSI127 |
| Product ID | 244-127-000-021-A2-B02 |
| Condition | NEW |
| Gross weight | 2.1kg |
| Packing size | 20*15*10cm |
| Payment Term | T/T |
| Warranty | 1 year |
| Courier Partner | DHL, UPS, TNT, FedEx and EMS |
Description:GSI127 is a galvanic separation and power supply unit for Vibro-Meter measurement chains.
It provides 4 kVRMS isolation between the sensor and monitoring sides and supports current- and voltage-signal transmission over measurement systems.
The unit is compatible with various Vibro-Meter signal conditioners and sensors, as well as standard IEPE and 4–20 mA sensors.
With frame-voltage noise rejection, configurable signal transfer functions, and integrated diagnostics
the GSI127 is suitable for vibration monitoring, hazardous-area applications, and functional safety systems up to SIL 2.Power supply and galvanic separation unit for sensors and/or signal conditioners with a current or voltage output.4 kVRMS galvanic separation between the sensor side and the monitor side.50 VRMS galvanic separation between the power supply and the output signal (floating output).μA to mV transfer function for long distance current-signal transmission, V to V transfer function for short-distance voltage-signal transmission.Also compatible with industry-standard IEPE sensors and 4 to 20 mA loop-powered sensors, including vibration sensors/transmitters.Certified for use in potentially explosive atmospheres (hazardous areas).Suitable for use in functional safety contexts: SIL 2 in accordance with IEC 61508.
