Brand Name: HIMA Item no: F3330 Price:$550 Origin: USA Packaging Details: New and original factory Delivery time: In Stock Payment: T/T

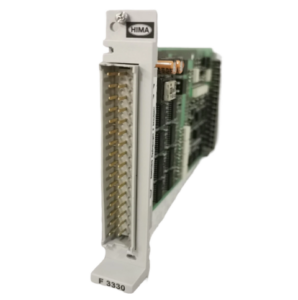

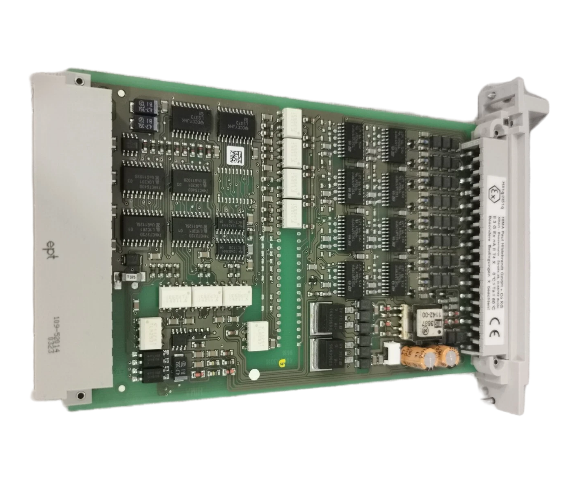

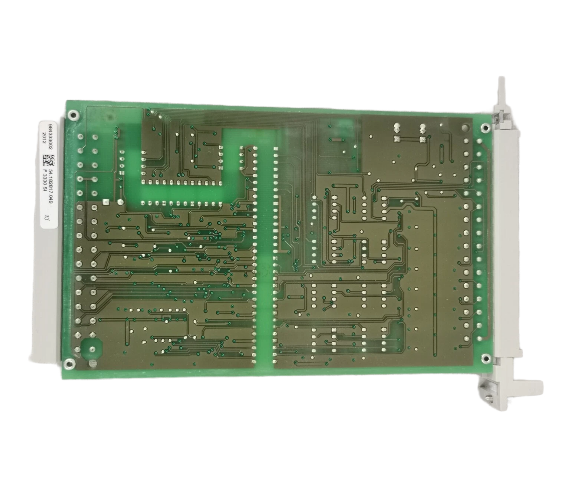

HIMA F3330 8-fold output module Product Details:
| Brand name | HIMA |
| Model | F3330 |
| Product ID | F3330 |
| Condition | NEW |
| Gross weight | 1 kg |
| Packing size | 40*35*5cm |
| Payment Term | T/T |
| Warranty | 1 year |
| Courier Partner | DHL, UPS, TNT, FedEx and EMS |
HIMA F3330 Datasheetresistive load or inductive load up to 500 mA (12 W), lamp connection up to 4 W,
with integrated safety shutdown, with safe isolation, no output signal with break of the L- supply requirement class AK 1 ... 6
The module is automatically tested during operation. The main test routines are:
– Reading back of the output signals.
The operating point of the 0 signal read back is ≤ 6.5 V. Up to this value the level of the 0 signal may arise in case of a fault and this will not be detected
– Switching capability of test signal and cross-talking (walking-bit test).
Outputs: 500 mA, k short circuit proof
Internal voltage drop: max. 2 V at 500 mA load
Admissible line resistance (in + out): max. 11 Ohm
Undervoltage tripping at ≤ 16 V
Operating point for
short circuit current: 0.75 ... 1.5 A
Outp. leakage current: max. 350 µA
Output voltage if output is reset: max. 1,5 V
Duration of the test signal: max. 200 µs
Space requirement: 4 TE
Operating data: 5 V DC: 110 mA 24 V DC: 180 mA in add. load
