HIMA F7131 Power supply monitoring

Brand Name: HIMA
Item no: F7131
Price：$500
Origin: USA
Packaging Details: New and original factory
Delivery time: In Stock
Payment: T/T

Description

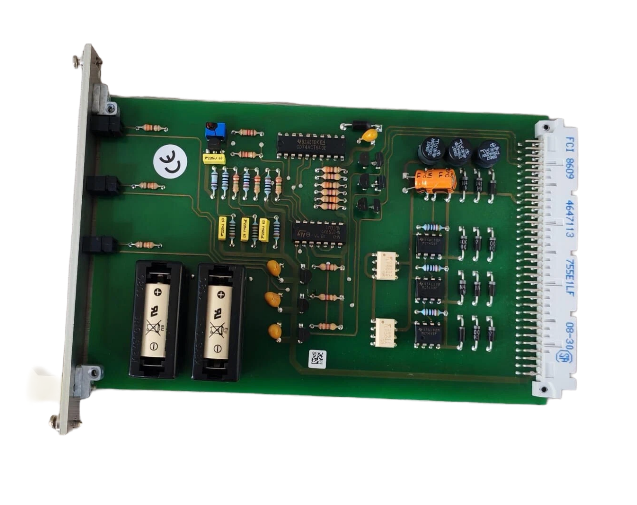

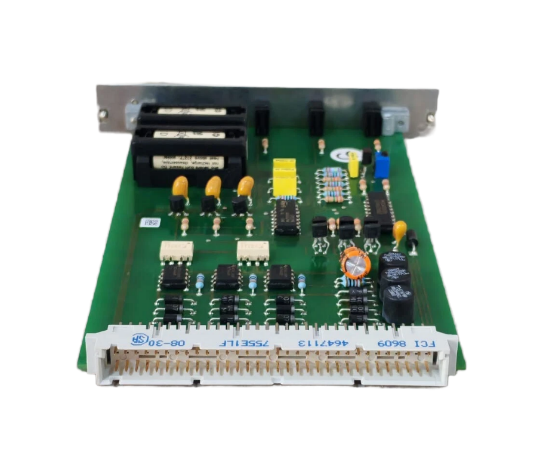

HIMA F7131 Power supply monitoring

 Product Details:

Brand name	HIMA
Model	F7131
Product ID	F7131
Condition	NEW
Gross weight	1 kg
Packing size	40355cm
Payment Term	T/T
Warranty	1 year
Courier Partner	DHL, UPS, TNT, FedEx and EMS

Description:

HIMA-F7131 Datasheet

The module F 7131 monitors the system voltage 5 V generated by the 3 power supplies max. as follows:

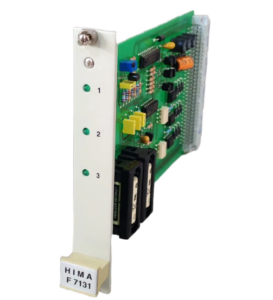

– 3 LED-displays at the front of the module
– 3 test bits for the central modules F 8650 or F 8651 for the diagnostic display and for the operation within the user's program
– For the using within the additional power supply (assembly kit B 9361) the function of the power supply modules in it could be monitored via 3 outputs of 24 V (PS1 to PS 3)

Note: Battery change is recommended every four years.
Type of battery: CR-1/2 AA-CB, HIMA part no. 44 0000016.

Space requirement 4TE
Operating data    5 V DC: 25 mA 24 V DC: 20 mA
