HIMA F7133 4-fold power distribution

We develop creative, comprehensive, and sustainable engineering solutions for a future where society can thrive.

HIMA F7133 4-fold power distribution

Brand Name: HIMA
Item no: F7133
Price：$500
Origin: USA
Packaging Details: New and original factory
Delivery time: In Stock
Payment: T/T

Description

HIMA F7133 4-fold power distribution

 Product Details:

Brand name	HIMA
Model	F7131
Product ID	F7131
Condition	NEW
Gross weight	1 kg
Packing size	40355cm
Payment Term	T/T
Warranty	1 year
Courier Partner	DHL, UPS, TNT, FedEx and EMS

Description:

HIMA-F7133 Datasheet。PDF

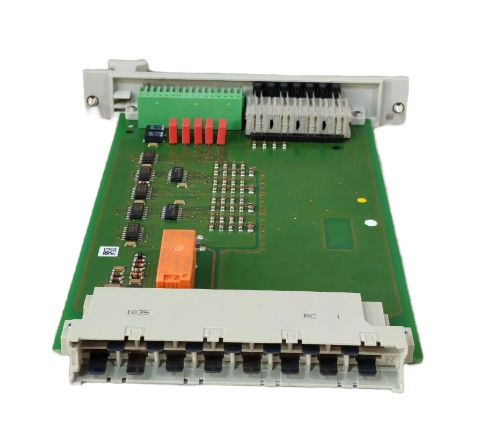

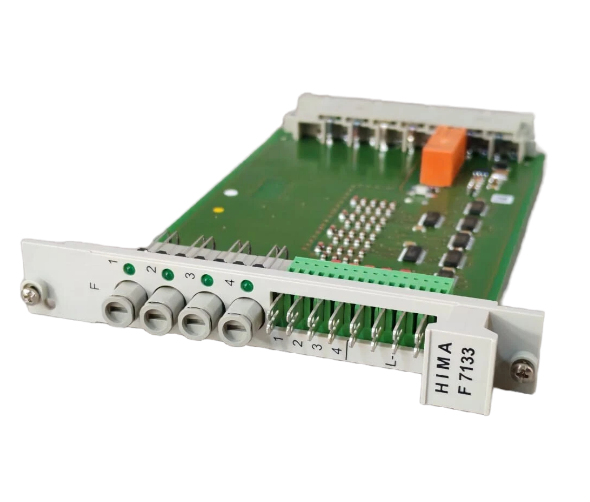

The module has 4 miniature fuses providing the line protection. Each fuse is associated to a LED.
The fuses are monitored via an evaluation logic and the state of each circuit is announced to the related LED.
The contact pins 1, 2, 3, 4 and L- on the front side serve to connect L+ resp. EL+ and L- to supply the IO modules and sensor contacts.
The contacts d6, d10, d14, d18 serve as rear terminals for 24 V supply of one IO slot each.If all fuses are in order, the relay contact d22/z24 is closed. If a fuse is not equipped or faulty, the relay will be deenergized.

Note:
– If the module is not wired all LEDs are off.
– If the input voltage is missed in case of current pathes which are connected together no information to the state of the different fuses can
be given.
Fuses                                               max. 4 A slow blow
Switching time                                 approx. 100 ms (relay)
Loadability of the relay contacts      30 V/4 A (continuous load)
Residual voltage in                          0 V
case of fuse tripped
Residual current in                          0 mA
case of fuse tripped
Residual voltage in                          max. 3 V
case missing supply
Residual current in <                       1 mA
case of missing supply
Space requirement                          4 TE
Operating data                                 24 V DC: 60 mA
