Brand Name: Honeywell
Item no: MC-TAIH02
Price：$340
Origin: USA
Packaging Details: New and original factory
Delivery time: In Stock

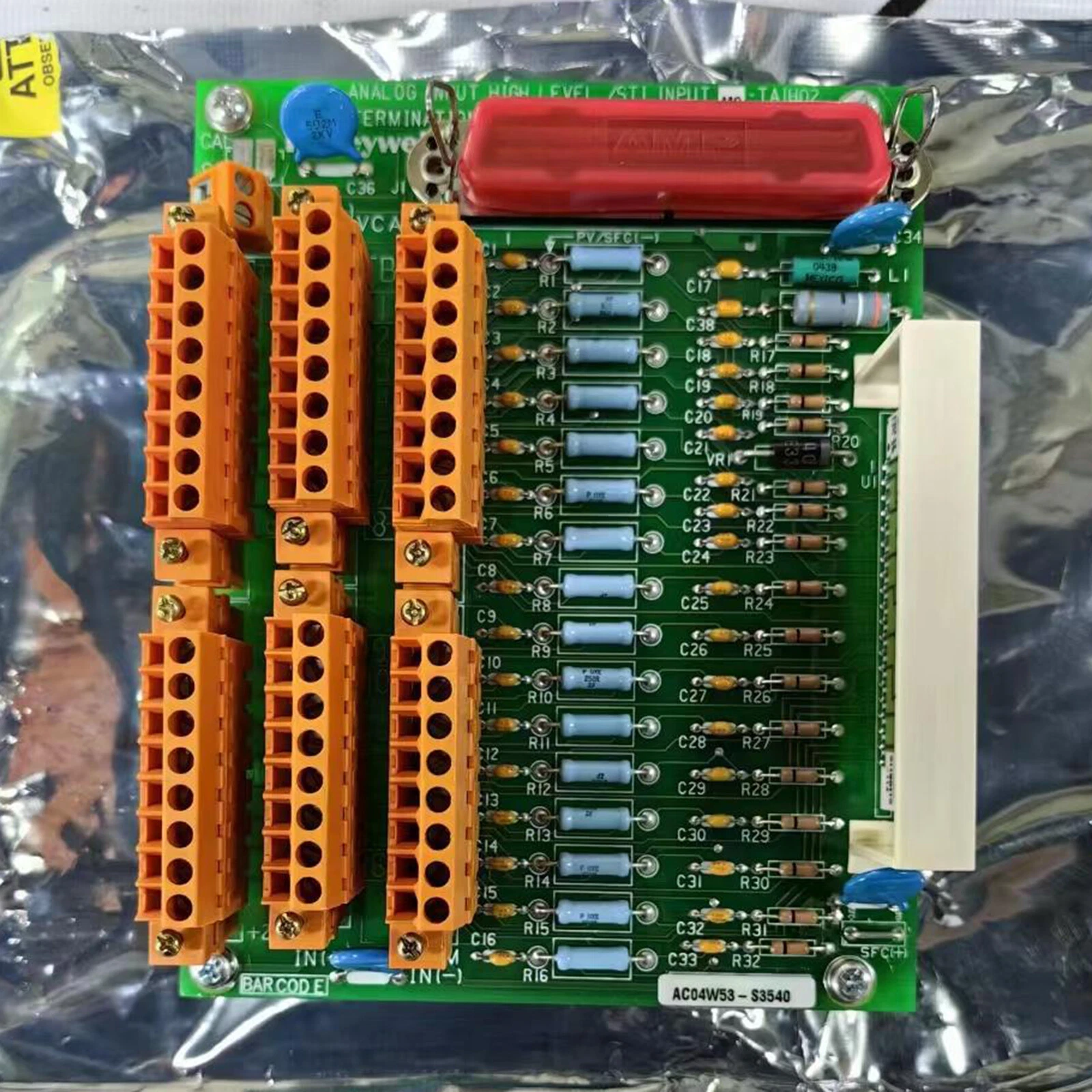

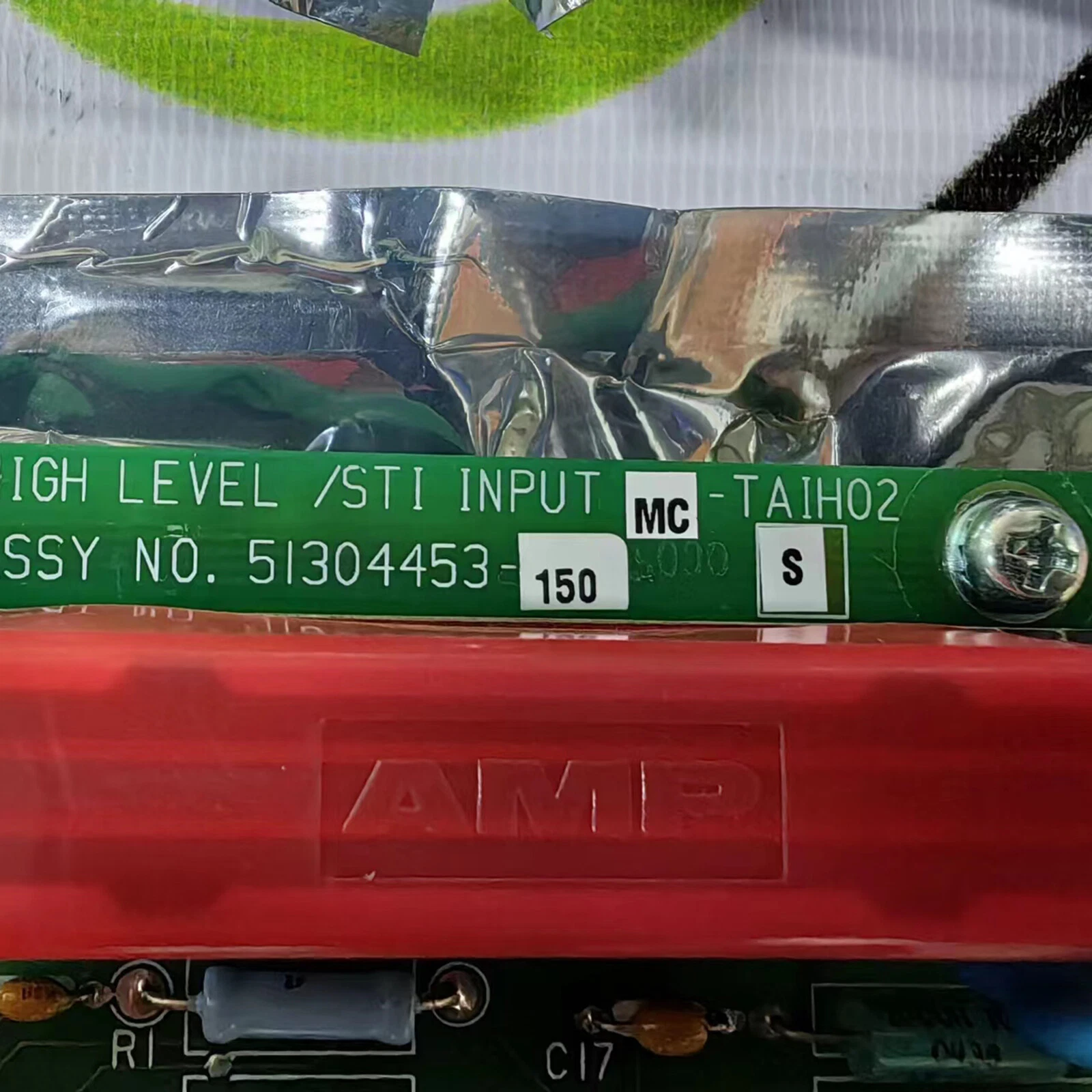

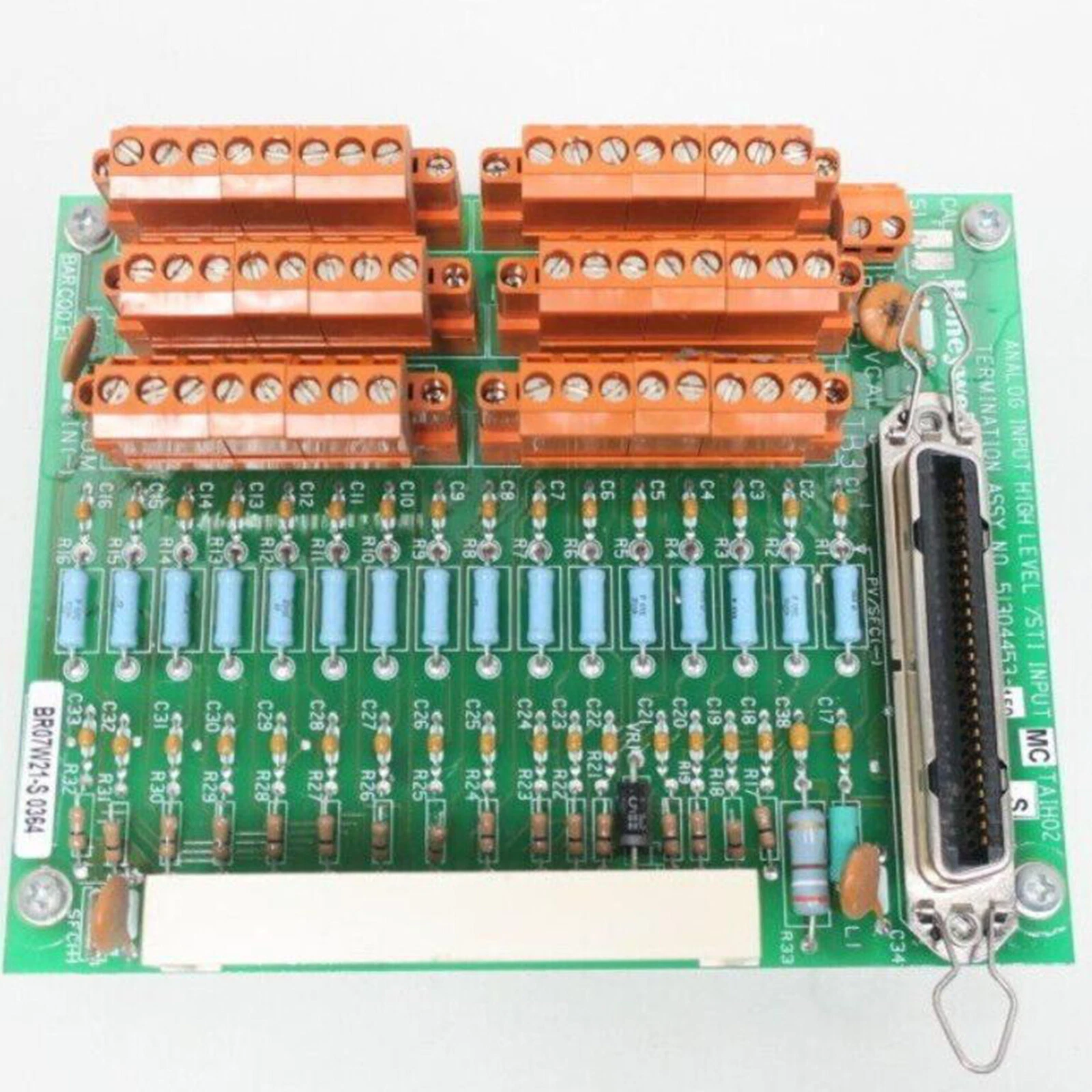

Payment: T/THoneywell UCN MC-TAIH02 High Level Analog Input/STI FTA ModuleProduct Details:
Brand Name | Honeywell |
| Model | MC-TAIH02 |
| Condition | NEW |
| Gross weight | 2.1kg |
| Packing size | 20*15*10cm |
Payment Term | T/T |
Warranty | 1 year |
Courier Partner | DHL, UPS, TNT, FedEx and EMS |
Parameter | Specification |
Input Type | Voltage, current (2-wire or self-powered transmitters) |
Input Channels | 16 differential input channels |
Common Mode Rejection Ratio (DC to 60 Hz) | 70 dB (with 500 Ω source imbalance) |
Common Mode Voltage Range (DC to 60 Hz) | -6 V to +5 V peak |
A/D Converter Resolution | 16 bits (14 bits effectively used) |
Input Ranges | 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (via 250 Ω resistor) |
Normal Mode Rejection Ratio (@ 60 Hz) | 32 dB |
Normal Mode Filter Response | Single-pole RC, -3 dB @ 1 Hz |
Max. Normal Mode Input (No damage) | ±30 V (differential inputs) |
Crosstalk (Channel-to-Channel, DC to 60 Hz) | 60 dB |
Input Impedance (Voltage Inputs) | >10 MΩ (powered) |
