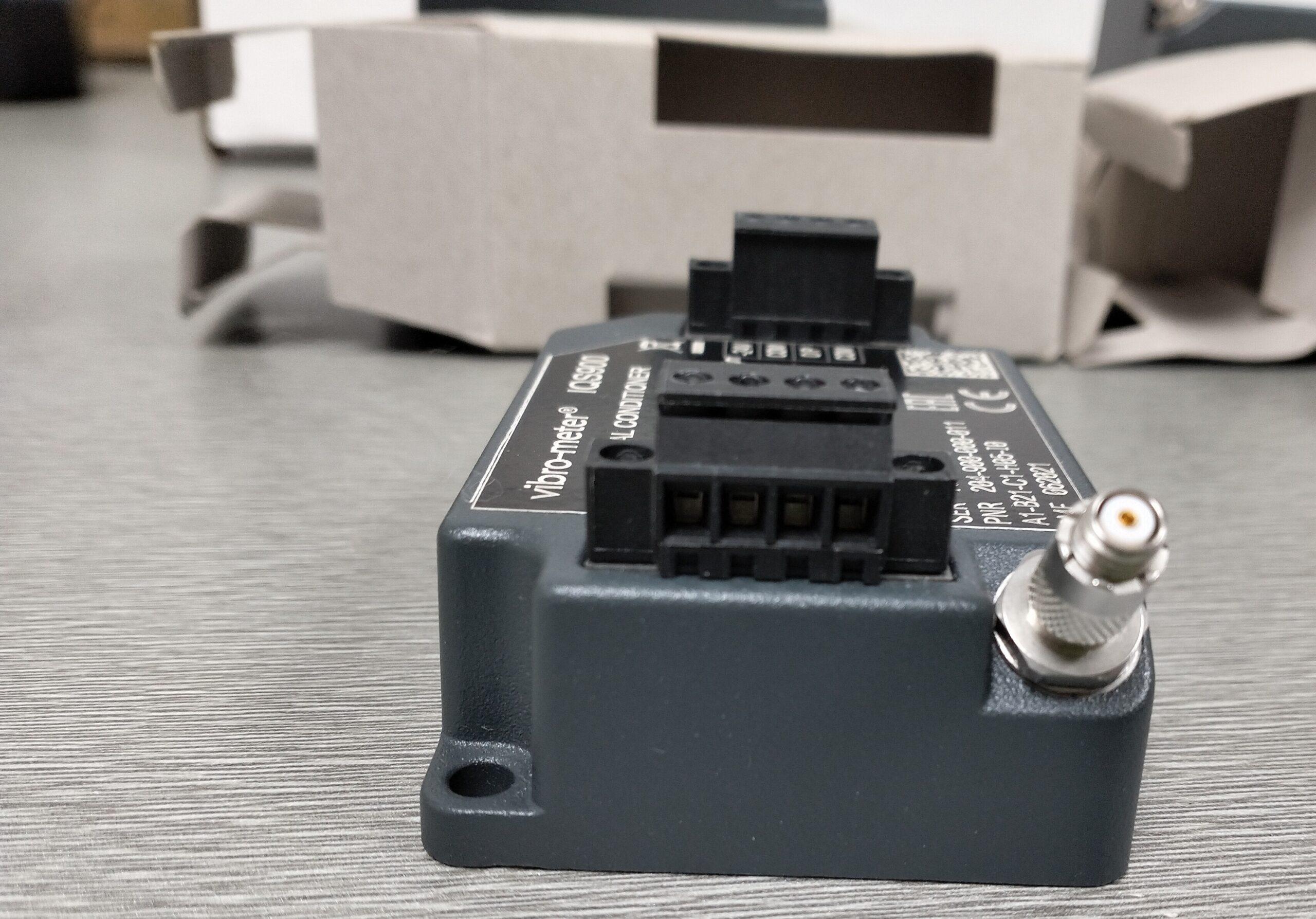

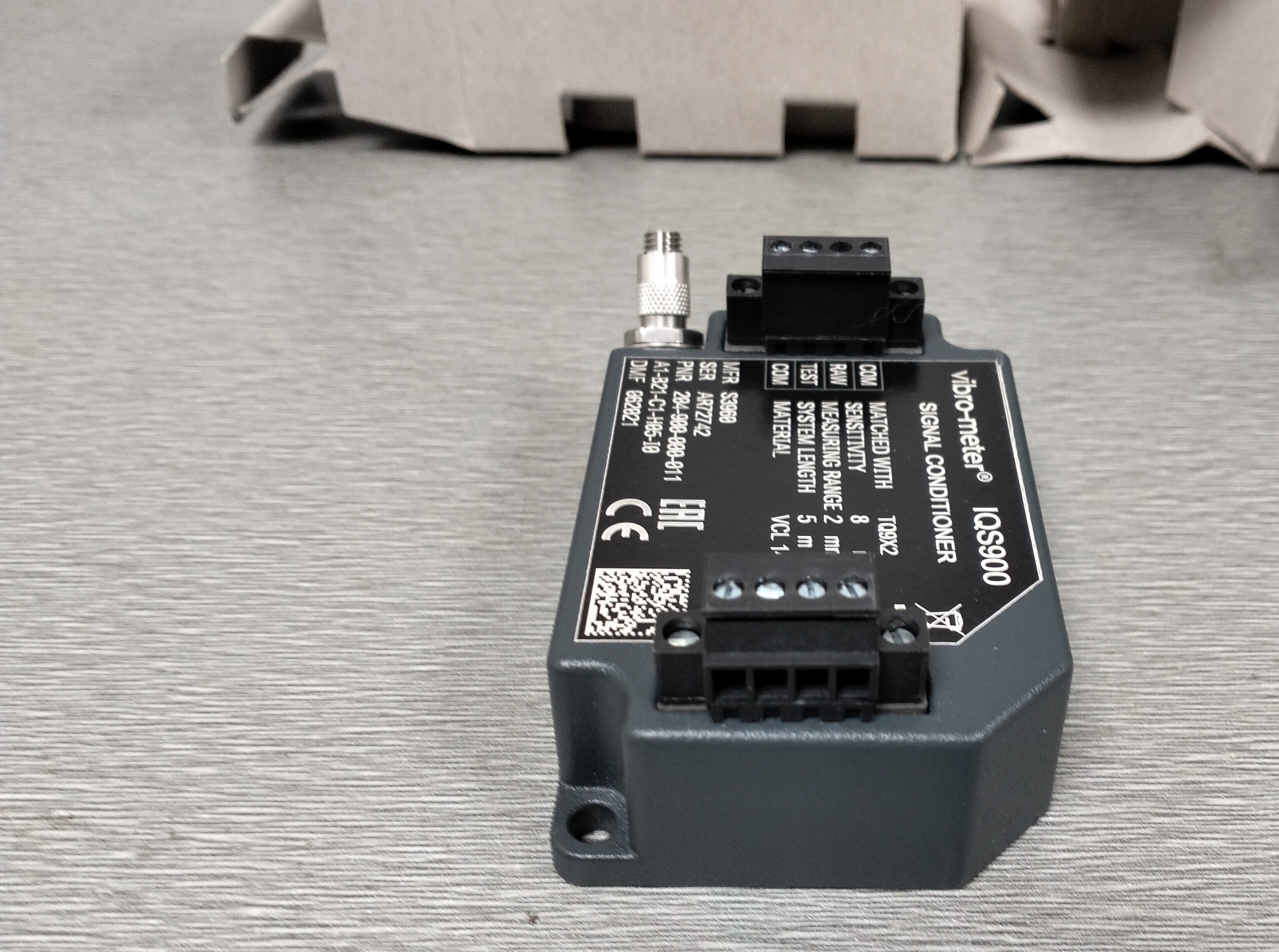

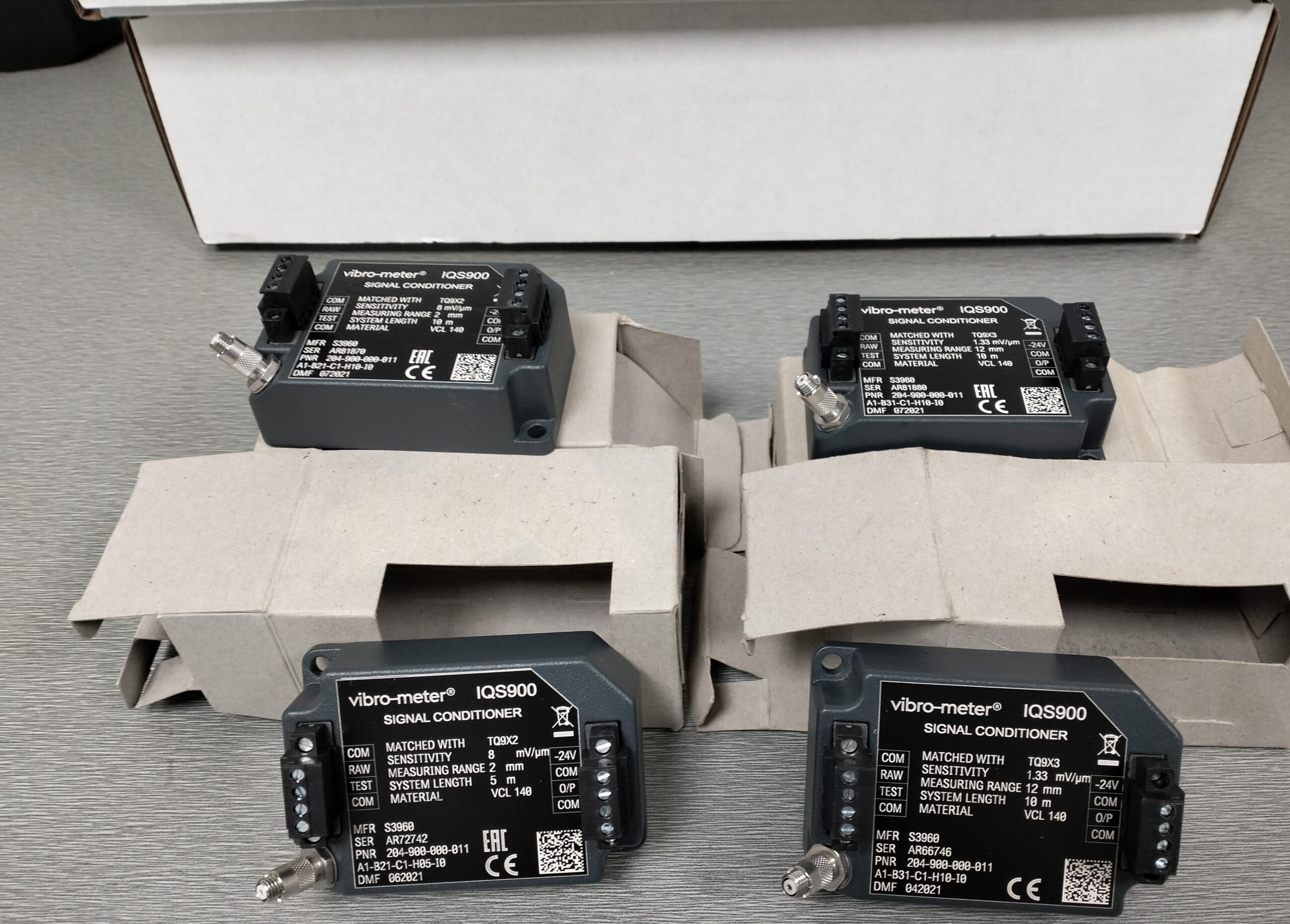

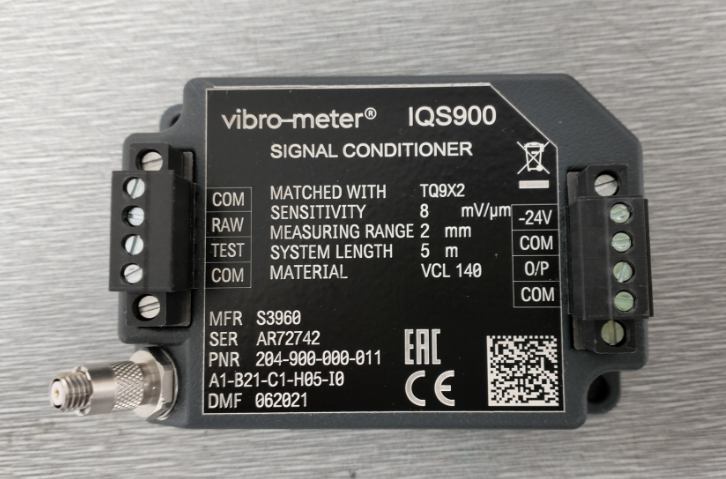

IQS900 204-900-000-011 A1-B21-C1-H05-I0 Signal conditioner

Product Details:

Description:

The system is based around a TQ403 non-contact sensor and an IQS900 signal conditioner.
Together, these form a calibrated proximity measurement system in which each component is interchangeable.
The system outputs a voltage or a current proportional to the distance between the transducer tip and the target, such as a machine shaft.
The IQS900 signal conditioner contains a highfrequency modulator/demodulator that supplies a driving signal to the transducer.
This generates the necessary electromagnetic field used to measure the gap.
The conditioner circuitry is made of high-quality components and is mounted in a painted aluminium housing.
Note: The IQS900 signal conditioner matches or betters the outstanding measurement performance and specifications of the IQS450 signal conditioner, which it replaces.
Accordingly, the IQS900 is compatible with all TQ9xx and TQ4xx proximity sensors / measurement chains.
In addition, the IQS900 signal conditioner includes improvements such as: SIL 2 “by design”, improved frame-voltage immunity, improved electromagnetic
immunity and emissions, smaller output impedance (voltage output), optional diagnostic circuitry (that is, built-in self-test (BIST)), raw output pin, test input pin,
new DIN-rail mounting adaptor and removable screw-terminal connectors for easier installation.

KEY FEATURES AND BENEFITS:

Non-contact measurement system based oneddy-current principle.
Ex certified versions for use in hazardous areas(potentially explosive atmospheres).
Conforms to APl 670 recommendations.
5 and 10 m systems.
Temperature-compensated design.
Voltage or current output with protection againstshort circuits.
Frequency response:DC to 20 kHz (-3 dB).
Measurement range:12 mm.
Temperature range:-40 to +180'C.
