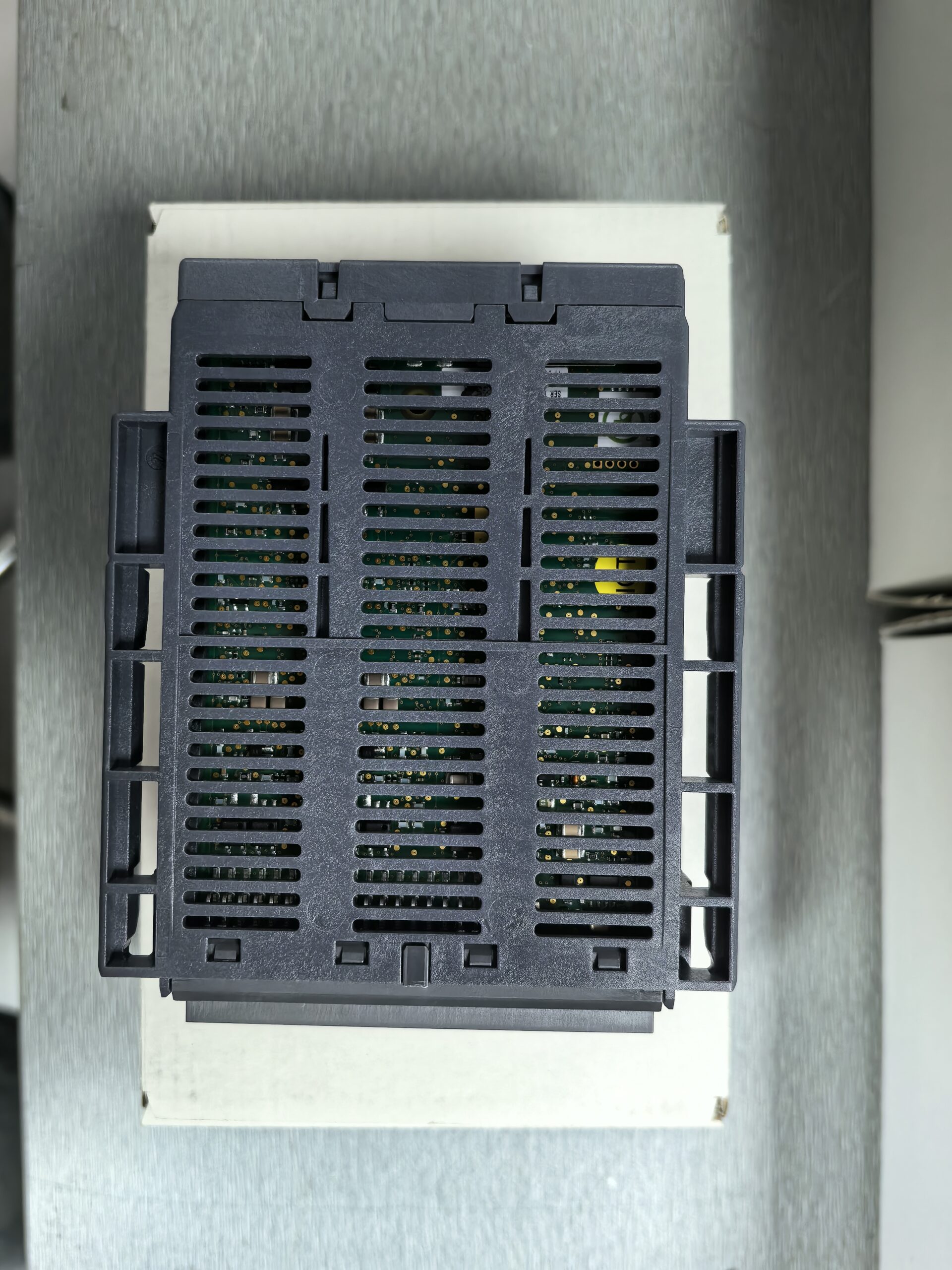

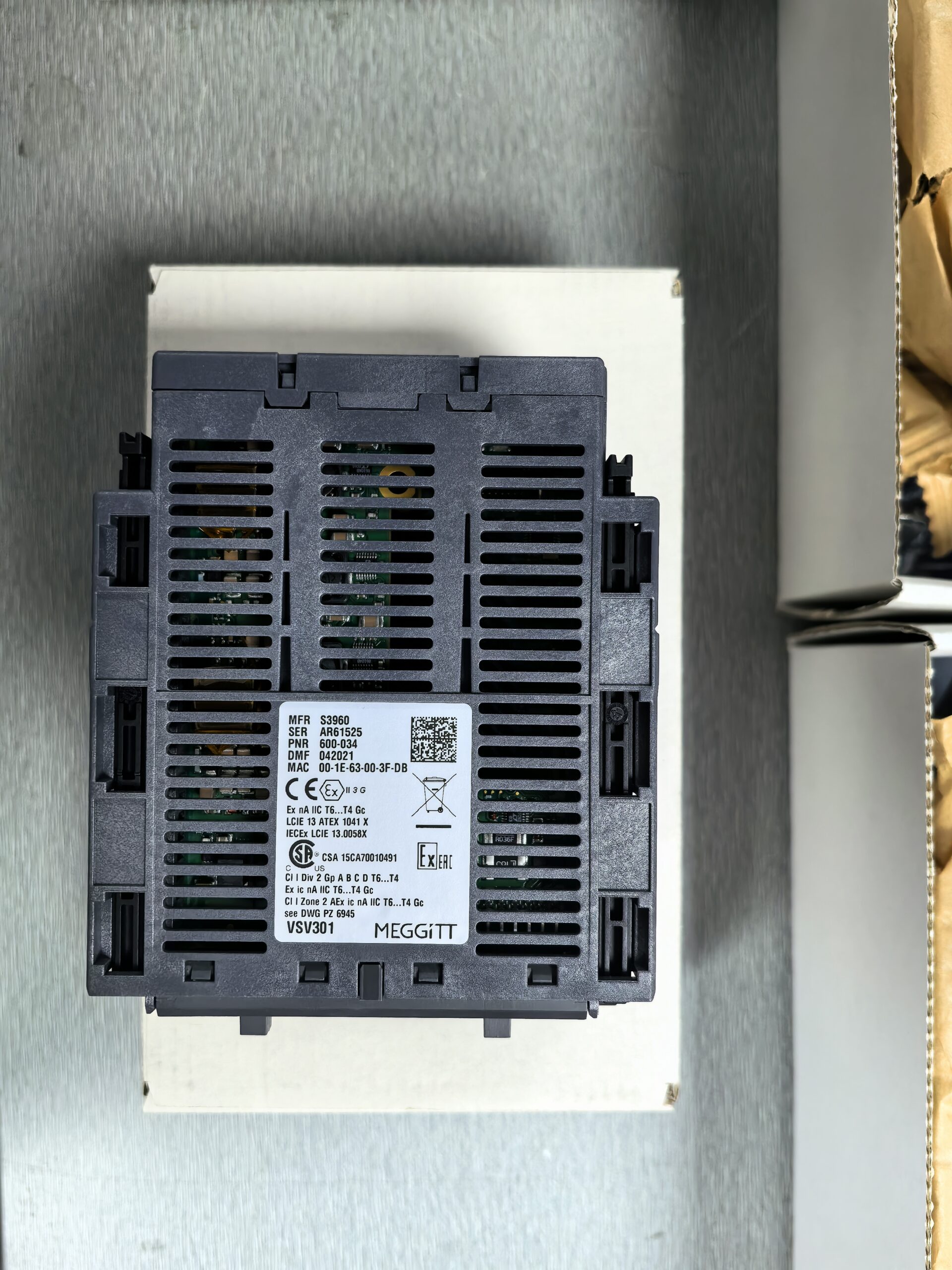

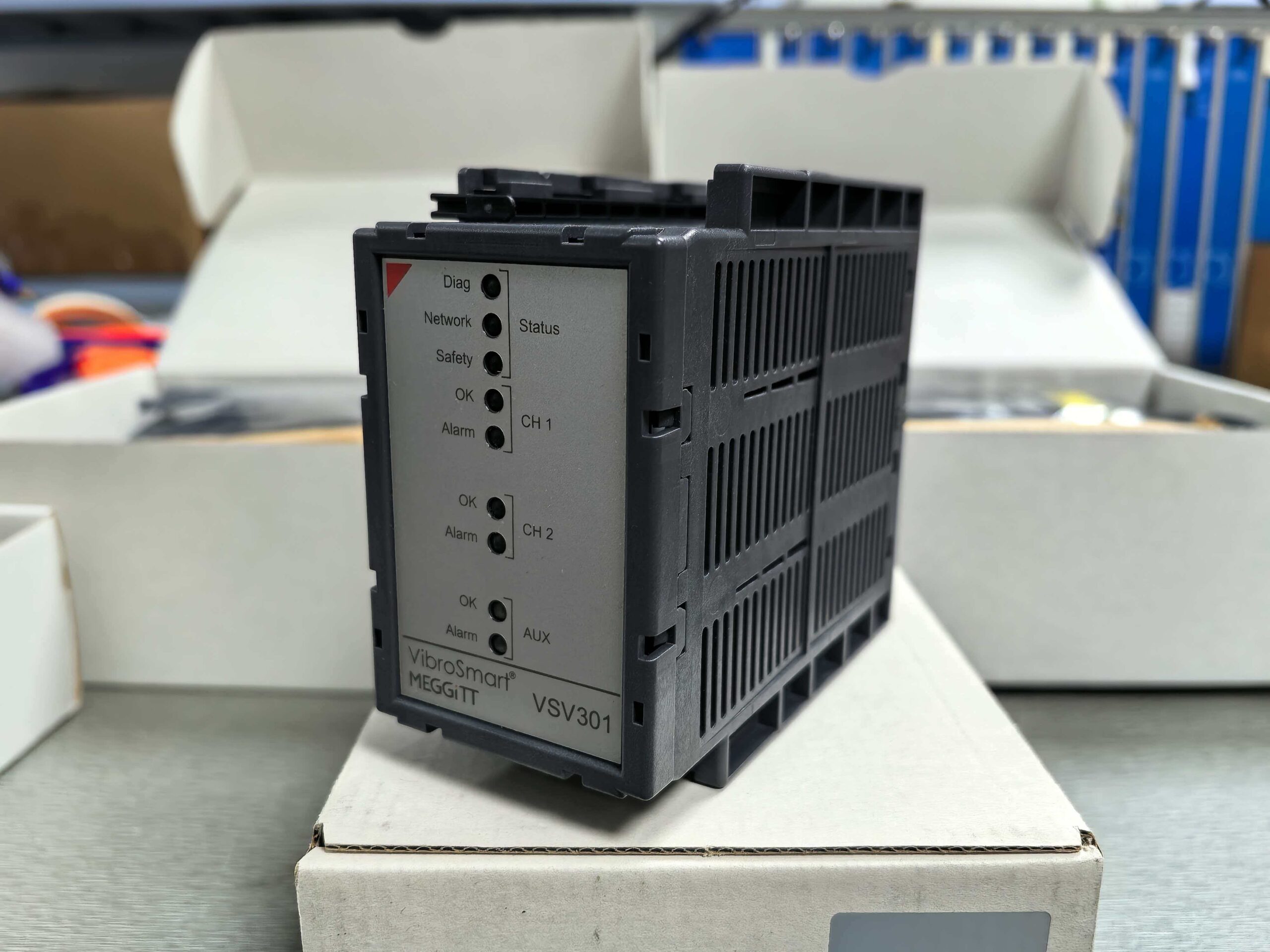

Monitoring Module VSV301 600-034

Product Details:

Description:

The VSV301 monitoring module performs data acquisition and complete signal processing, including filtering, analog-to-digital conversion, and both time and frequency domain analysis.

It generates processed outputs and extracted data for display, supporting FFT analysis, spectral band extraction, trending, alarm checks, and run-up or run-down monitoring.

The module also includes built-in logic functions to combine alarm and status signals and control relay outputs.

It is fully software configurable, allowing flexible data capture, adjustable analysis parameters, and advanced visualization through dedicated monitoring software.

FEATURES:
• 2 individually configurable dynamic input channels with up to 19 kHz bandwidth
• 1 auxiliary input channel configurable as either a tachometer or a DC input
• Synchronous sampling of input channels
• Up to 20 configurable processed outputs per module
• Spectrum analyzer (FFT) up to 1600 lines every 100 ms
• Up to 4 alarms per processed output, with hysteresis and time delay
• AND, OR and majority voting logic functions for the combination of alarm and status information
• Redundant communications and redundant power supply inputs to improve availability
• Analog outputs: 2 local outputs configurable as 4-20 mA or ±5 V
• Discrete outputs: 2 local relays
• Real-time Ethernet communications
• Live insertion and removal of modules (hotswappable) with automatic reconfiguration
• Fully software configurable
• Robust enclosures with DIN rail mounting
