Brand Name: TSI system part Item no: TQ403 111-403-000-013 Price：$1400 Origin: USA Packaging Details: New and original factory Delivery time: In Stock Payment: T/T
TQ403 111-403-000-013 A1-B1-C086-D000-E010-F0-G000-H05 proximity measurement system
Product Details:
| Brand name | TSI system part |
| Model | TQ403 111-403-000-013 |

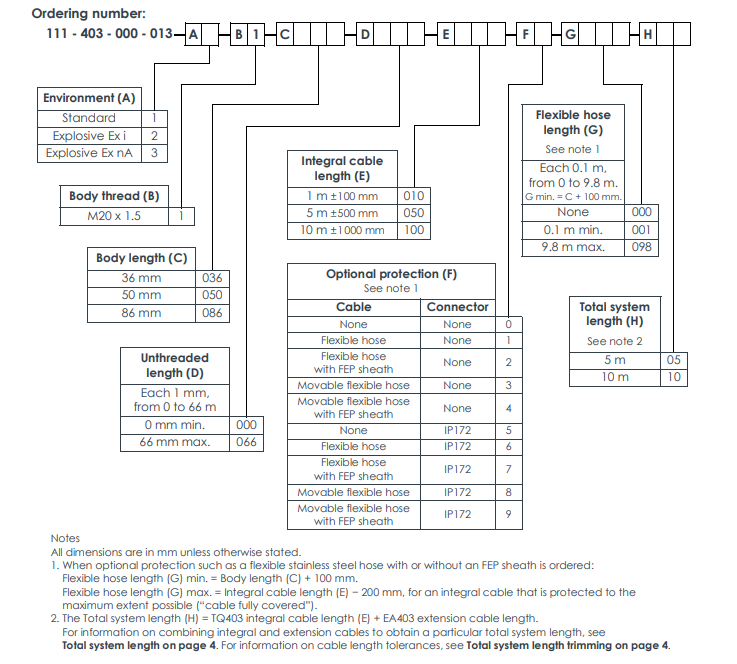

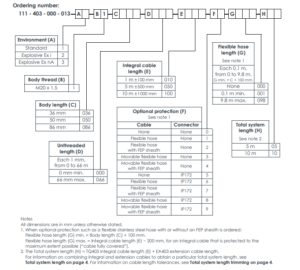

| Product ID | A1-B1-C086-D000-E010-F0-G000-H05 |
| Condition | NEW |
| Gross weight | 2.1kg |
| Packing size | 20*15*10cm |
| Payment Term | T/T |
| Warranty | 1 year |
| Courier Partner | DHL, UPS, TNT, FedEx and EMS |
FEATURES
----------------------------------------------------------------------------------------------------------------» From the Vibro-Meter® product line
» Non-contact measurement based on eddy-current principle
» Ex certified versions for use in hazardous areas (potentially explosive atmospheres)
» 5 and 10 m systems
» Temperature-compensated design
» Voltage or current output with protection against short circuits
» Frequency response: DC to 20 kHz (−3 dB)
» Measurement range: 12 mm
» Temperature range: −40 to +180 °C
Description:
----------------------------------------------------------------------------------------------------------------
The TQ403, EA403 and IQS450 form a proximity measurement system from Meggitt’s vibro-meter® product line.
This proximity measurement system allows contactless measurement of the relative displacement of moving machine elements.
TQ4xx-based proximity measurement systems are particularly suitable for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas and
hydraulic turbines, as well as in alternators, turbo-compressors and pumps.

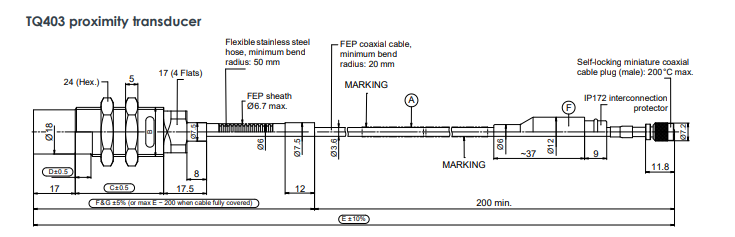

The active part of the transducer is a coil of wire that is moulded inside the tip of the device, made of Torlon® (polyamide-imide).
The transducer body is made of stainless steel.
The target material must, in all cases, be metallic.
The transducer body is available only with metric thread.
The TQ403 has an integral coaxial cable, terminated with a self-locking miniature coaxial connector.
Various cable lengths (integral and extension) can be ordered.
