Brand Name: TSI system part Item no: CP216 143-216-000-251 Price：$30000 Origin: USA Packaging Details: New and original factory Delivery time: In Stock Payment: T/T

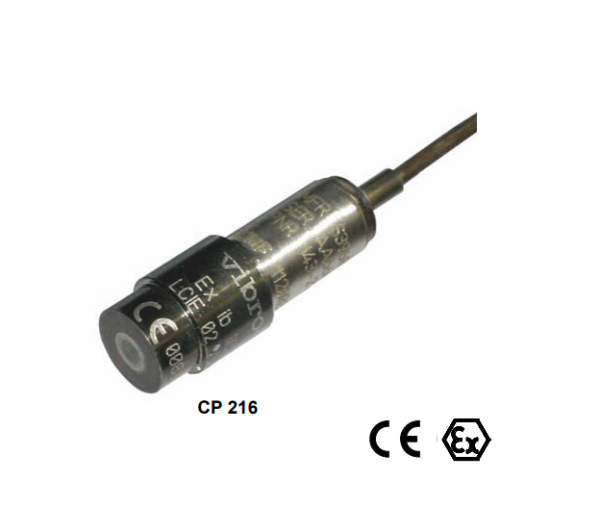

TSI system part CP216 143-216-000-251 Piezoelectric pressure transducer
Product Details:
| Brand name | TSI system part |
| Model | CP216 143-216-000-251 |
| Product ID | CP216 143-216-000-251 |
| Condition | NEW |
| Gross weight | 2.1kg |
| Packing size | 20*15*10cm |
| Payment Term | T/T |
| Warranty | 1 year |
| Courier Partner | DHL, UPS, TNT, FedEx and EMS |
FEATURES
----------------------------------------------------------------------------------------------------------------» From the Vibro-Meter® product line
» Extreme temperature capability: −70 to 520°C
» High-pressure capability: up to 350 bar
» Pressure sensitivity: 200 pC/bar
» Frequency range: 2 Hz to 15 kHz
» Internal case insulation
» Certified for use in potentially explosive atmospheres
Description:
----------------------------------------------------------------------------------------------------------------
The use of man-made piezoelectric material in the CP 216 a compression-mode dynamic pressure transducer produces an extremely stable device.
The CP 216 is designed for long-term monitoring or development testing over wide temperature ranges in extreme environments, such as gas turbines.

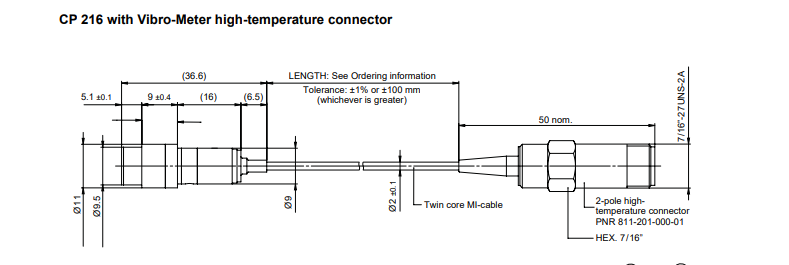

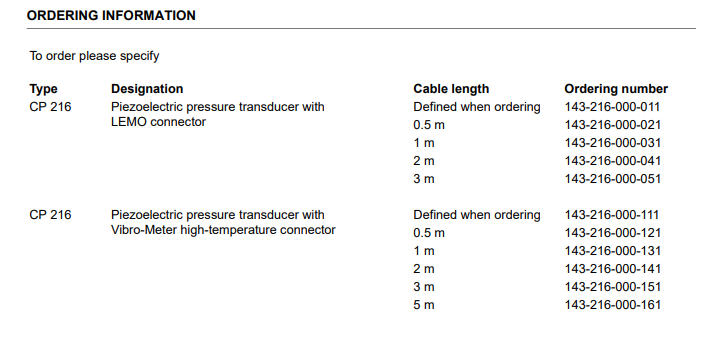

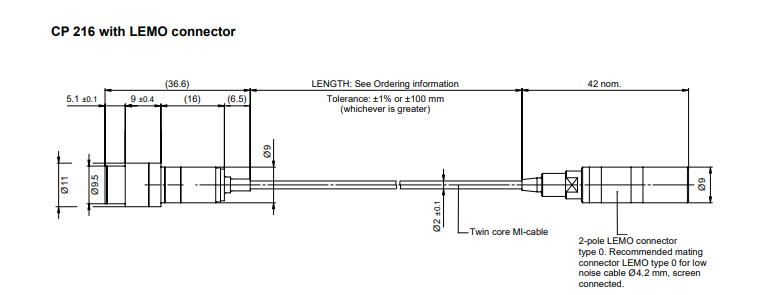

The transducer is fitted with an integral mineral insulated cable (twin conductors) that can be terminated with either a LEMO connector or a high-temperature connector developed by Vibro-Meter.
Cable assemblies are available to connect the transducer to an IPC 704 signal conditioner.
