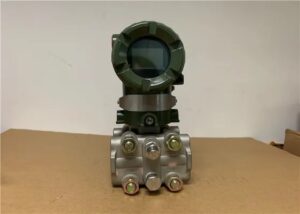

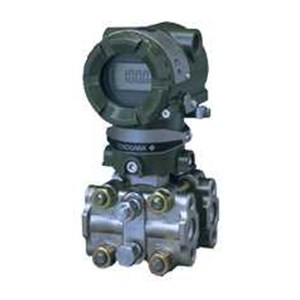

Yokogawa EJA110A-EHS5A-92DA Differential Pressure Transmitter

Brand Name

Yokogawa

Model

EJA110A-EHS5A-92DA

Condition

NEW

Gross weight

2.1kg

Packing size

20*15*10cm

Payment Term

T/T

Warranty

1 year

Courier Partner

DHL, UPS, TNT, FedEx and EMS

Reference Accuracy of Calibrated Span (zero-based, linear output, wetted parts material code ‘S’, silicone oil; includes linearity, hysteresis, repeatability)

- Standard: ±0.065 % of Span
- For spans below X: ±[0.015 + 0.05×(Span/X)] % of Span
(X value by capsule: L=3 kPa {12 inH2O}, M=10 kPa {40 inH2O}, H=100 kPa {400 inH2O}, V=1.4 MPa {200 psi})

Square Root Output Accuracy (percent of flow span)

- 50 % or Greater: Same as reference accuracy
- 50 % to Dropout point: Reference accuracy × (50 / Square root output (%))

Ambient Temperature Effects (Total Effects per 28 °C (50 °F) Change)

- L capsule: ±[0.08 % Span + 0.09 % URL]
- M capsule: ±[0.07 % Span + 0.02 % URL]
- H capsule: ±[0.07 % Span + 0.015 % URL]
- V capsule: ±[0.07 % Span + 0.03 % URL]

Static Pressure Effects (Total Effects per Change)

- L capsule: ±[0.07 % Span + 0.052 % URL] per 3.4 MPa {500 psi}
- M/H/V capsules: ±[0.1% Span + 0.028 % URL] per 6.9 MPa {1000 psi}

Static Pressure Effect on Zero (correctable at line pressure)

- L capsule: ±[0.02 % Span + 0.052 % URL] per 3.4 MPa {500 psi}
- M/H/V capsules: ±0.028 % of URL per 6.9 MPa {1000 psi}

Overpressure Effects (M, H and V capsules)

±0.03 % of URL per 16 MPa {2300 psi}

Stability

- M/H/V capsules: ±0.1 % of URL per 60 months
- L capsule: ±0.2 % of URL per 12 months

Power Supply Effects “◊”

±0.005 % per Volt (from 21.6 to 32 V DC, 350 Ω)
