Brand Name: TSI system part Item no: RPS6U 200-582-200-021 Price：$3800 Origin: USA Packaging Details: New and original factory Delivery time: In Stock Payment: T/T

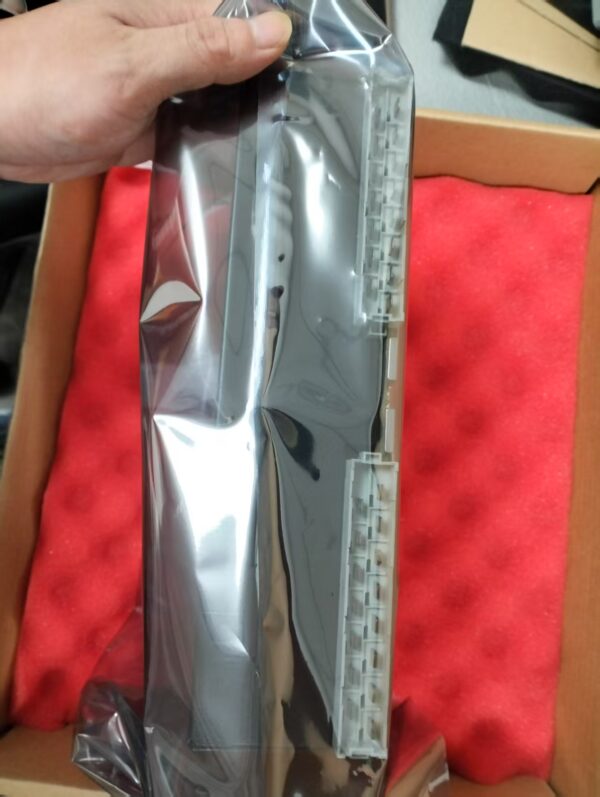

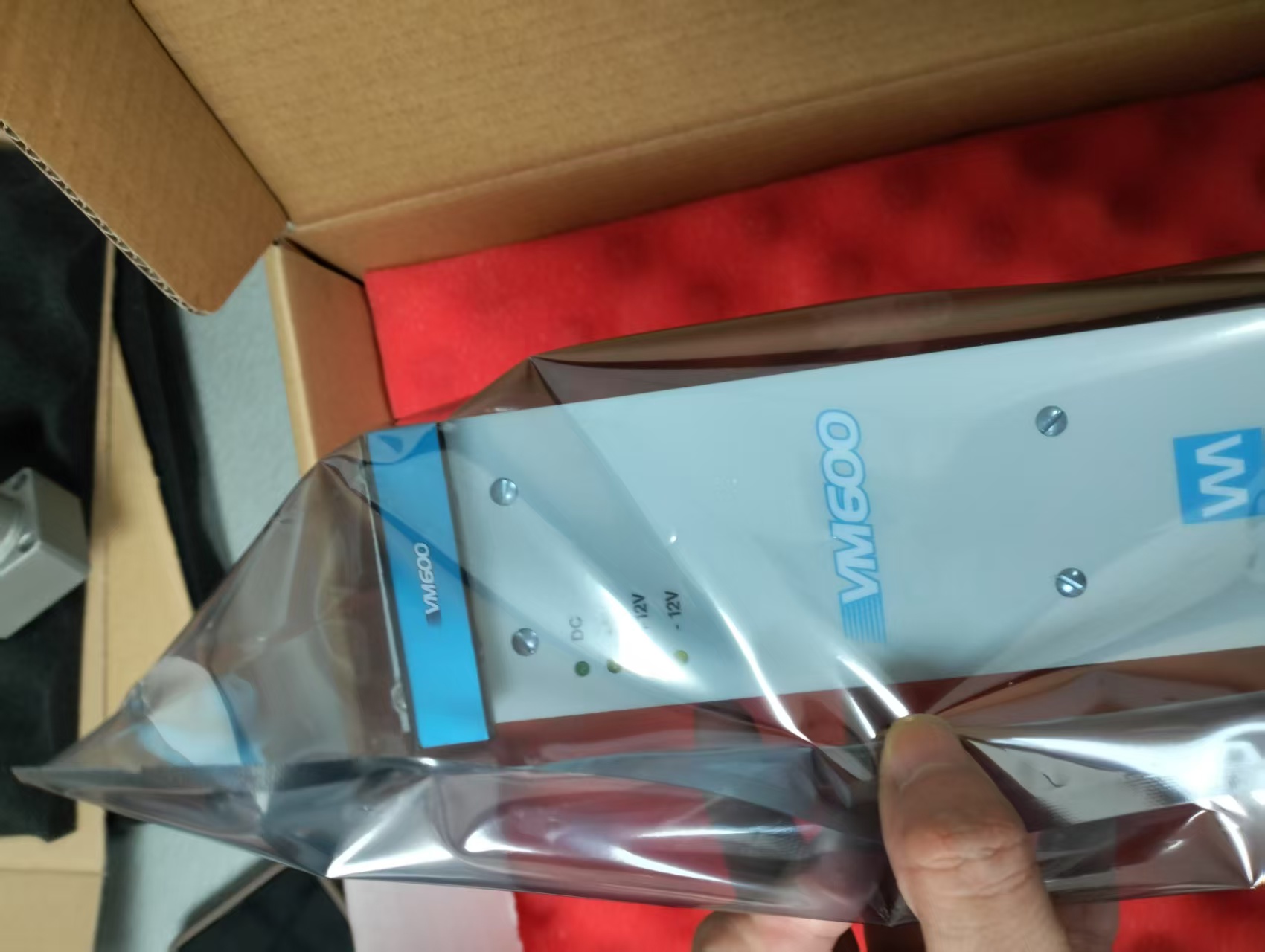

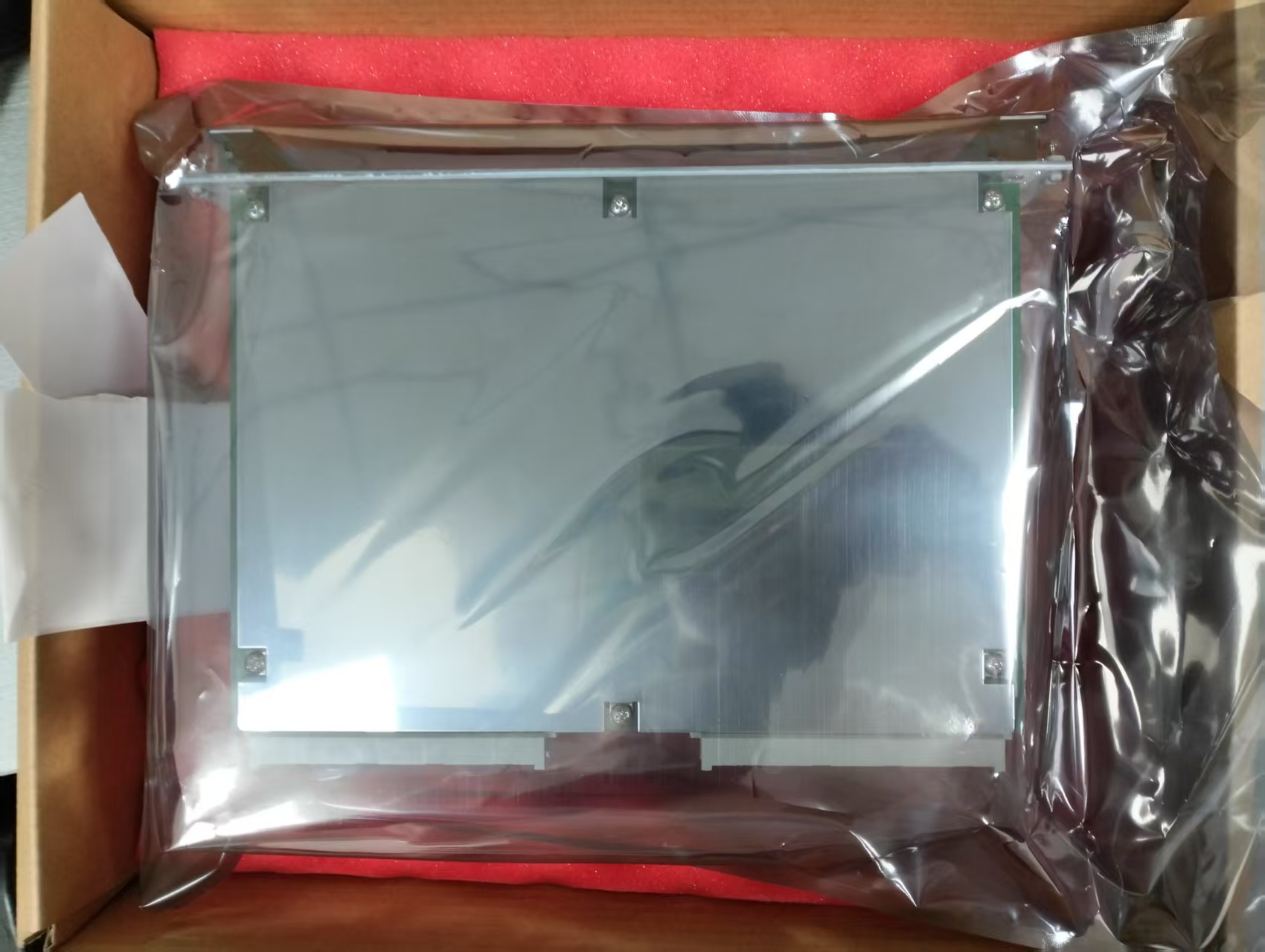

VM600 RPS6U 200-582-200-021 rack power supplies
Product Details:
| Brand name | TSI system part |
| Model | RPS6U 200-582-200-021 |
| Product ID | RPS6U 200-582-200-021 |
| Condition | NEW |
| Gross weight | 2.1kg |
| Packing size | 20*15*10cm |
| Payment Term | T/T |
| Warranty | 1 year |
| Courier Partner | DHL, UPS, TNT, FedEx and EMS |
FEATURES
----------------------------------------------------------------------------------------------------------------» From the Vibro-Meter® product line
» Power supply for VM600Mk2/VM600 ABE04x 19″ system racks with a height of 6U
» Input: AC-input and DC-input versions
» Outputs: +5 VDC and ±12 VDC
» Output over-voltage, short-circuit and overload protection
» Status indicators
» High-power, high-performance, high-efficiency
» Minimal derating within the operating temperature range
Description:
----------------------------------------------------------------------------------------------------------------
The VM600Mk2/VM600 RPS6U rack power supplies are designed for use in the VM600Mk2/VM600 series of machinery protection systems and
condition and performance monitoring systems, from Meggitt’s vibro-meter® product line.
A VM600Mk2/VM600 RPS6U rack power supply is installed in the front of a VM600Mk2/VM600 ABE04x system rack (19″ system racks with a standard
height of 6U) and connects via two high-current connectors to the VME bus of the rack’s backplane.
The RPS6U power supply provides +5 VDC and ±12 VDC to the rack itself and all installed modules (cards) in the rack via the rack’s backplane.
Either one or two VM600Mk2/VM600 RPS6U rack power supplies can be installed in a VM600Mk2/VM600 ABE04x system rack. A rack with one
RPS6U power supply (330 W version) supports the power requirements for a full rack of modules (cards) in applications with operating temperatures up to 50°C (122°F).
Alternatively, a rack can have two RPS6U power supplies installed in order to either support rack power supply redundancy or in order to supply power to the modules (cards) non-redundantly
over a wider range of environmental conditions.
A VM600Mk2/VM600 ABE04x system rack with two RPS6U power supplies installed can operate redundantly (that is, with rack power supply redundancy) for a full rack of modules (cards).
This means that if one RPS6U fails, the other will provide 100% of the rack’s power requirement so that the rack will continue to operate, thereby increasing the availability of the machinery monitoring system.
